Lever-shaft assy for BMW 5 Series E12 525 (1981)

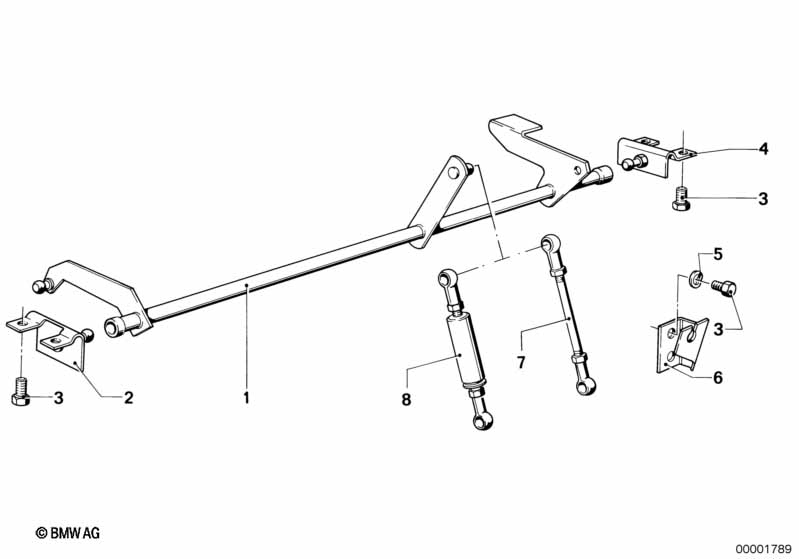

This Lever-shaft assy technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lever-shaft assy | 1 | 08/1976 | 13211263670 | ENDED | Shop at ECS Tuning | ||||
| 02 | Supporting bracket | 1 | 08/1976 | 13211263675 | $2.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M6X12-8.8-ZNNIV | 6 | 08/1976 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 04 | Supporting bracket | 1 | 08/1976 | 13211263677 | $3.89 | ENDED | Shop at ECS Tuning | |||
| 07 | Pull rod | 1 | 05/1977 | 13211263822 | $9.71 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Lever-shaft assy?
- This technical diagram illustrates the Lever-shaft assy within the Fuel preparation system group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Lever-shaft assy (Part #13211263670).
- Which models use the hardware listed in this Lever-shaft assy?
- The hardware and components featured in the Lever-shaft assy are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Lever-shaft assy (13211263670) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lever-shaft assy assembly?
- Each item in the Lever-shaft assy corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Lever-shaft assy by locating its position on the schematic, which then links to the official BMW part number 13211263670 for the Fuel preparation system section.
