Regulator warm-up-phase for BMW 5 Series E12 520i

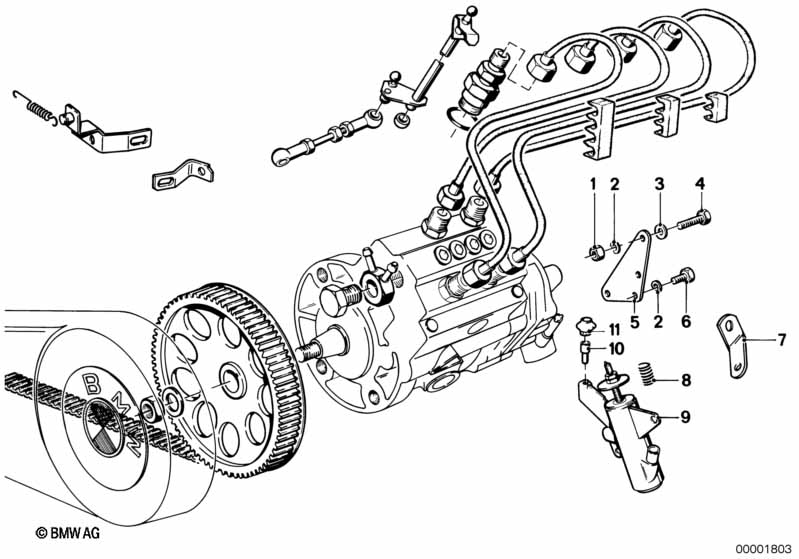

This Regulator warm-up-phase technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M6-8-ZNNIV SI | 1 | 10/1975 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 02 | Spring washer Black | B6-ZN | 4 | 10/1975 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 02 | Washer | 5.3-140 HV-ZNS | 4 | 10/1975 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 02 | Wave washer | B6-ZNS3 | 4 | 10/1975 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | A6,4-ZNNIV SI | 1 | 10/1975 | 07119904202 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 10/1975 | 07119904116 | $0.38 | Shop at ECS Tuning | |||
| 05 | Holder | 1 | 10/1975 | 13511256958 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 10/1975 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 07 | Support | 1 | 10/1975 | 11531256301 | ENDED | Shop at ECS Tuning | ||||
| 08 | Compression spring | 1 | 10/1975 | 13511260192 | ENDED | Shop at ECS Tuning | ||||
| 09 | Regulator warm-up-phase | 1 | 10/1975 | 13511256538 | $495.30 | ENDED | Shop at ECS Tuning | |||
| 09 | AT-warm-up regulator | 1 | 10/1975 | 13511256543 | ENDED | Shop at ECS Tuning | ||||
| 10 | Ball joint | 1 | 10/1975 | 13511256077 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering cap | 1 | 10/1975 | 13511257374 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520i Regulator warm-up-phase?
- This technical diagram illustrates the Regulator warm-up-phase within the Fuel preparation system group for the 5 Series E12 520i. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #07119905543).
- Which models use the hardware listed in this Regulator warm-up-phase?
- The hardware and components featured in the Regulator warm-up-phase are specific to the 5 Series E12 520i. These technical specifications ensure that parts like the Hex nut (07119905543) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Regulator warm-up-phase assembly?
- Each item in the Regulator warm-up-phase corresponds to the numbered list below the illustration. For the 5 Series E12 520i, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 07119905543 for the Fuel preparation system section.
