Control units Diesel for BMW 3 Series E36 325td (1998)

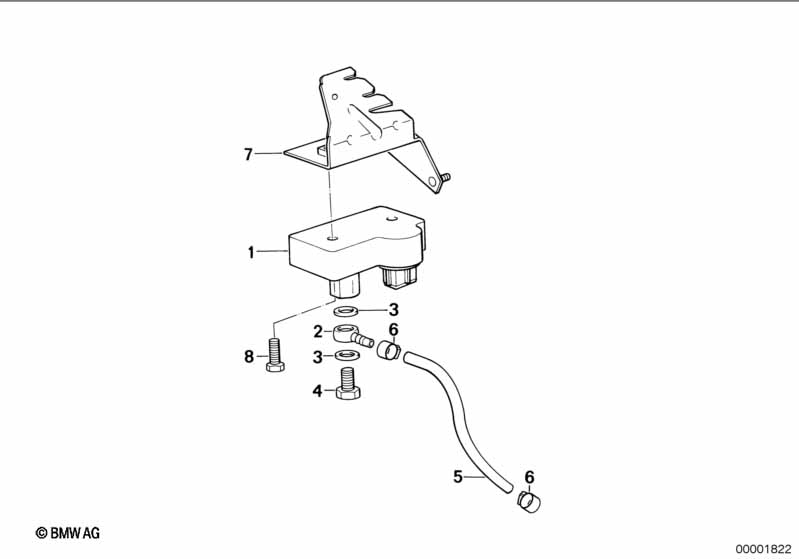

This Control units Diesel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel injection system-ressure sensor | 250KPA | 1 | 09/1992 | 13622244674 | $78.68 | Shop at ECS Tuning | |||
| 05 | Hose | X | 13622242620 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 2 | 64111373486 | $0.78 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 09/1992 | 12522244973 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X30-8.8-ZNS | 2 | 07119913925 | $1.74 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325td Control units Diesel?
- This technical diagram illustrates the Control units Diesel within the Fuel preparation system group for the 3 Series E36 325td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Fuel injection system-ressure sensor (Part #13622244674).
- Which models use the hardware listed in this Control units Diesel?
- The hardware and components featured in the Control units Diesel are specific to the 3 Series E36 325td produced during 1998. These technical specifications ensure that parts like the Fuel injection system-ressure sensor (13622244674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control units Diesel assembly?
- Each item in the Control units Diesel corresponds to the numbered list below the illustration. For the 3 Series E36 325td, you can identify the Fuel injection system-ressure sensor by locating its position on the schematic, which then links to the official BMW part number 13622244674 for the Fuel preparation system section.
