Volume air flow sensor for BMW 3 Series E30 318i (1982)

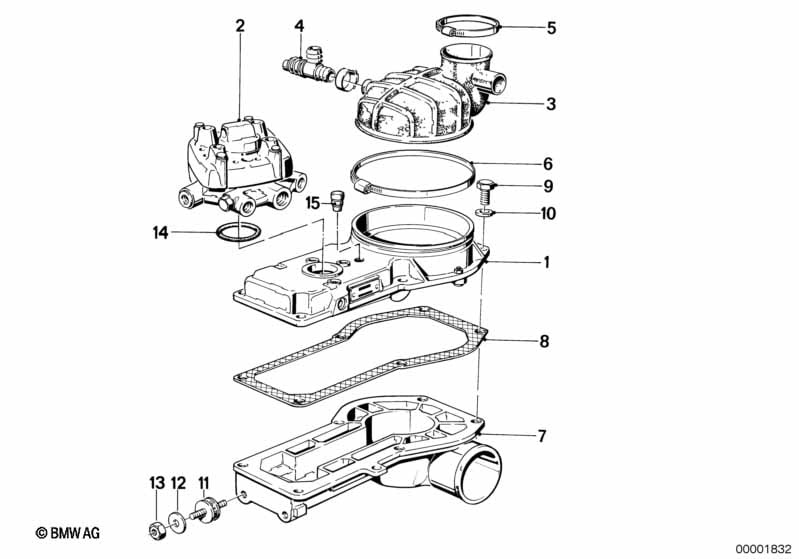

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511274943 | $770.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511274943 | $770.04 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=Yes L810A=Yes S199A=Yes |
|||||||||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511271776 | ENDED | Shop at ECS Tuning | ||||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511271776 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=Yes L810A=No S199A=Yes |
|||||||||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511271776 | ENDED | Shop at ECS Tuning | ||||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511271776 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=No L810A=Yes S199A=Yes |
|||||||||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511271776 | ENDED | Shop at ECS Tuning | ||||
| 01 | Volume air flow sensor | 1 | 09/1983 | 13511271776 | ENDED | Shop at ECS Tuning | ||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056609 | $707.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Volume distributor | 1 | 09/1983 | 13519056609 | $707.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=Yes L810A=Yes S199A=Yes |
|||||||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056610 | ENDED | Shop at ECS Tuning | ||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056610 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=Yes L810A=No S199A=Yes |
|||||||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056610 | ENDED | Shop at ECS Tuning | ||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056610 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=No L810A=Yes S199A=Yes |
|||||||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056610 | ENDED | Shop at ECS Tuning | ||||
| 02 | Volume distributor | 1 | 09/1983 | 13519056610 | ENDED | Shop at ECS Tuning | ||||
| 03 | Suction hood | 1 | 09/1983 | 13511267133 | $29.02 | Shop at ECS Tuning | ||||
| 03 | Suction hood | 1 | 09/1983 | 13511267133 | $29.02 | Shop at ECS Tuning | ||||
| 04 | T-Connector | 1 | 09/1983 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning | |||
| 04 | T-Connector | 1 | 09/1983 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose clamp | L77-84 | 1 | 09/1983 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L77-84 | 1 | 09/1983 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 06 | Hose clamp | L110-140 | 1 | 09/1983 | 13511262642 | $3.52 | ENDED | Shop at ECS Tuning | ||
| 06 | Hose clamp | L110-140 | 1 | 09/1983 | 13511262642 | $3.52 | ENDED | Shop at ECS Tuning | ||
| 07 | Housing | 1 | 09/1983 | 13511265890 | $40.91 | ENDED | Shop at ECS Tuning | |||
| 07 | Housing | 1 | 09/1983 | 13511265890 | $40.91 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket Asbestos Free | 1 | 09/1983 | 13511262077 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket Asbestos Free | 1 | 09/1983 | 13511262077 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M6X20-8.8-ZNS | 6 | 09/1983 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 09 | Hex bolt | M6X20-8.8-ZNS | 6 | 09/1983 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 10 | Spring washer Black | B6-ZN | 8 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 10 | Spring washer Black | B6-ZN | 8 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 10 | Washer | 5.3-140 HV-ZNS | 8 | 09/1983 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 10 | Washer | 5.3-140 HV-ZNS | 8 | 09/1983 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 10 | Wave washer | B6-ZNS3 | 8 | 09/1983 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 10 | Wave washer | B6-ZNS3 | 8 | 09/1983 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 11 | Rubber Mounting | 3 | 09/1983 | 13711272495 | $6.29 | Shop at ECS Tuning | ||||
| 11 | Rubber Mounting | 3 | 09/1983 | 13711272495 | $6.29 | Shop at ECS Tuning | ||||
| 12 | Washer | A6,4-200HV-ZNS3 | 3 | 09/1983 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 12 | Washer | A6,4-200HV-ZNS3 | 3 | 09/1983 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 13 | Hex nut | M6-8-ZNNIV SI | 3 | 09/1983 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 13 | Hex nut | M6-8-ZNNIV SI | 3 | 09/1983 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 14 | O-ring | 26X2,5 | 1 | 09/1983 | 11127836488 | $6.08 | Shop at ECS Tuning | |||
| 14 | O-ring | 26X2,5 | 1 | 09/1983 | 11127836488 | $6.08 | Shop at ECS Tuning | |||
| 15 | Cap | 1 | 09/1983 | 13512458935 | ENDED | Shop at ECS Tuning | ||||
| 15 | Cap | 1 | 09/1983 | 13512458935 | ENDED | Shop at ECS Tuning | ||||
