Volume air flow sensor for BMW 3 Series E21 320i (1979)

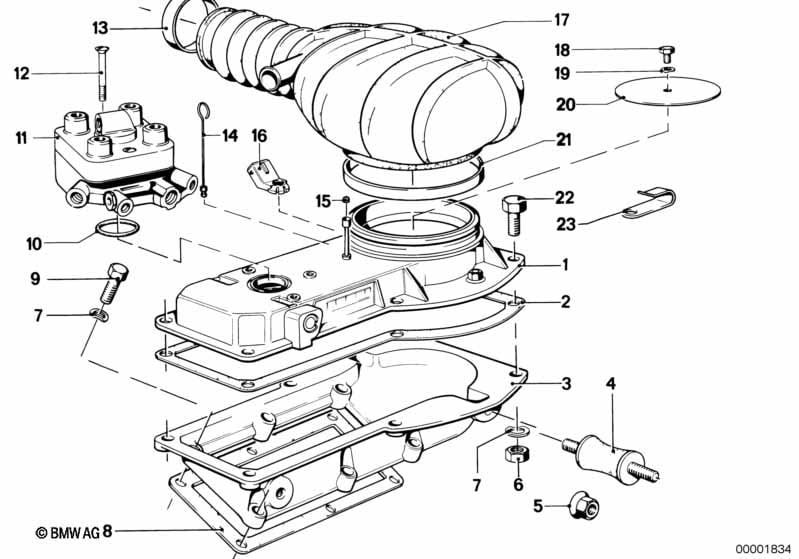

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with California version |
=No |
|||||||||
| 01 | Volume air flow sensor | 1 | 09/1979 | 13511266341 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and California version |
L807A=Yes =Yes |
|||||||||
| 01 | Volume air flow sensor | 1 | 09/1979 | 13511266342 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 09/1979 | 13511262077 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 03 | Housing | 1 | 09/1979 | 13711261758 | $54.68 | ENDED | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 2 | 09/1979 | 13711259818 | $6.98 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 09/1979 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 06 | Hex nut | M6-8-ZNNIV SI | 4 | 09/1979 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 07 | Spring washer Black | B6-ZN | X | 09/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 07 | Washer | 5.3-140 HV-ZNS | X | 09/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 07 | Wave washer | B6-ZNS3 | X | 09/1979 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 08 | Rubber seal | 1 | 09/1979 | 13711262073 | $2.97 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X22-8.8-ZNS3 | 6 | 09/1979 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 10 | Profile-gasket | 34,5X31X2X1,8 | 1 | 09/1979 | 13511265324 | $9.58 | ENDED | Shop at ECS Tuning | ||
| 11 | Volume distributor | 1 | 09/1979 | 13511466103 | $1740.00 | ENDED | Shop at ECS Tuning | |||
| 11 | Volume distributor | 1 | 09/1979 | 13519056613 | $1633.57 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | AM4X45 | 3 | 09/1979 | 07119906419 | ENDED | Shop at ECS Tuning | |||
| 13 | Hose clamp | L59-66 | 1 | 09/1979 | 07129952125 | $1.64 | Shop at ECS Tuning | |||
| For vehicles with National version japan and California version |
L807A=Yes =Yes |
|||||||||
| 14 | Blind plug | 1 | 09/1979 | 13511265321 | $9.03 | ENDED | Shop at ECS Tuning | |||
| For vehicles with California version |
=No |
|||||||||
| 15 | Cap | 1 | 09/1979 | 13512458935 | ENDED | Shop at ECS Tuning | ||||
| 16 | Twin plug | 1 | 09/1979 | 13511265328 | $7.72 | ENDED | Shop at ECS Tuning | |||
| 17 | Suction hood | 1 | 09/1979 | 13511263245 | $67.21 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | 1 | 09/1979 | 13511265320 | ENDED | Shop at ECS Tuning | ||||
| 19 | Spring washer Black | B6-ZN | 1 | 09/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 19 | Washer | 5.3-140 HV-ZNS | 1 | 09/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 19 | Wave washer | B6-ZNS3 | 1 | 09/1979 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 20 | Back pressure disk | 1 | 09/1979 | 13511265319 | $3.86 | ENDED | Shop at ECS Tuning | |||
| 21 | Hose clamp | L110-140 | X | 09/1979 | 13511262642 | $3.52 | ENDED | Shop at ECS Tuning | ||
| 22 | Hex bolt | M6X25 | 6 | 09/1979 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 23 | Clamp | 1 | 09/1979 | 11530623124 | $0.21 | ENDED | Shop at ECS Tuning | |||
