Fuel injection k-jetronic for BMW 3 Series E21 323i (1982)

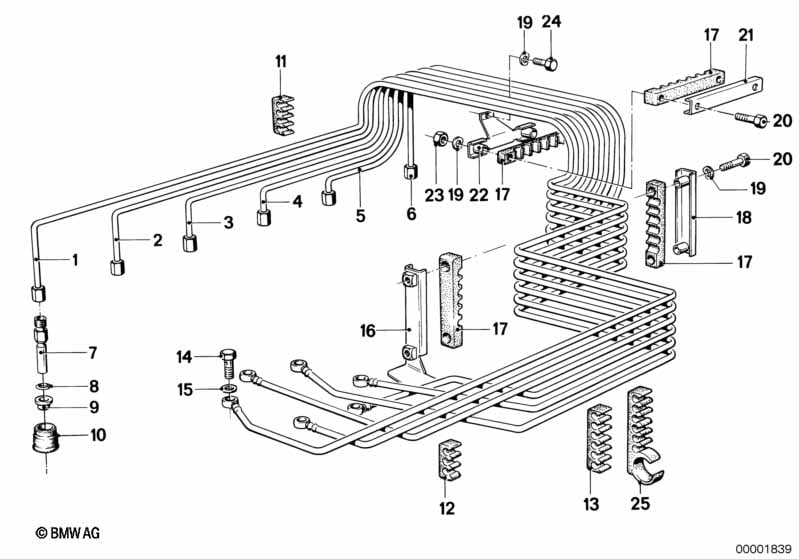

This Fuel injection k-jetronic technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection pipe 1st cylinder | 1 | 13531266605 | $32.14 | Shop at ECS Tuning | |||||
| 02 | Injection pipe 2nd cylinder | 1 | 13531266606 | $32.14 | Shop at ECS Tuning | |||||
| 03 | Injection pipe 3rd cylinder | 1 | 13531266607 | $32.14 | ENDED | Shop at ECS Tuning | ||||
| 04 | Injection pipe 4th cylinder | 1 | 13531266608 | $32.14 | Shop at ECS Tuning | |||||
| 05 | Set, fuel injection line | 1 | 13532420101 | Shop at ECS Tuning | ||||||
| 06 | Set, fuel injection line | 1 | 13532420101 | Shop at ECS Tuning | ||||||
| 07 | Injection valve | 6 | 13531266436 | $64.88 | Shop at ECS Tuning | |||||
| 08 | O-ring | 6 | 13531261228 | $1.52 | Shop at ECS Tuning | |||||
| 09 | Insulating bushing | 6 | 13531262276 | $0.62 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bush | 6 | 13531269477 | $1.58 | Shop at ECS Tuning | |||||
| 11 | Holder | 2 | 13531254038 | $1.57 | Shop at ECS Tuning | |||||
| 12 | Fuel pipe bracket | 2 | 13532446798 | Shop at ECS Tuning | ||||||
| 13 | Fuel pipe bracket | 2 | 13532446798 | Shop at ECS Tuning | ||||||
| 14 | Hollow bolt | 6 | 13531264360 | $2.90 | Shop at ECS Tuning | |||||
| 15 | Gasket ring | A08X11,5-CU | 6 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Bracket | 1 | 13531262748 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 17 | Terminal strip | 4 | 13531265439 | ENDED | Shop at ECS Tuning | |||||
| 18 | Bracket | 1 | 13531262747 | $4.52 | ENDED | Shop at ECS Tuning | ||||
| 19 | Spring washer Black | B6-ZN | 6 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Washer | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 19 | Wave washer | B6-ZNS3 | 6 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 20 | Hex bolt | M6X25 | 3 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X25 | 3 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 21 | Holder | 1 | 13531262637 | $0.53 | ENDED | Shop at ECS Tuning | ||||
| 22 | Holder | 1 | 13531267027 | $3.05 | ENDED | Shop at ECS Tuning | ||||
| 23 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 25 | Holder | 1 | 13531278734 | $1.05 | ENDED | Shop at ECS Tuning |
