Fuel pipe for BMW 5 Series E12 520i (1976)

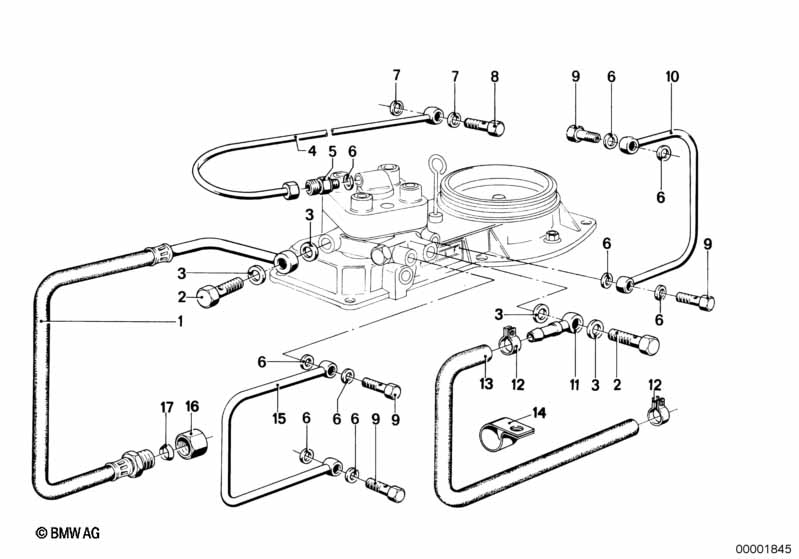

This Fuel pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy | 1 | 08/1976 | 13311266272 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hollow bolt | 2 | 08/1976 | 07119905427 | $2.25 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A12X15-CU | 4 | 08/1976 | 07119963129 | $0.11 | Shop at ECS Tuning | |||
| 04 | Pressure hose assy | 1 | 08/1976 | 13311265739 | $18.53 | ENDED | Shop at ECS Tuning | |||
| 05 | Threaded pipe joint | M8X1-M12X1,5 | 1 | 08/1976 | 13311262307 | $6.14 | ENDED | Shop at ECS Tuning | ||
| 06 | Gasket ring | A08X11,5-CU | 9 | 08/1976 | 07119963042 | $0.09 | Shop at ECS Tuning | |||
| 07 | Gasket ring | A10X13,5-CU | 2 | 08/1976 | 07119963072 | $0.11 | Shop at ECS Tuning | |||
| 08 | Hollow bolt | 1 | 08/1976 | 13311265734 | $3.67 | ENDED | Shop at ECS Tuning | |||
| 09 | Hollow bolt | 4 | 08/1976 | 13531264360 | $2.90 | Shop at ECS Tuning | ||||
| 10 | Pressure hose assy | 1 | 08/1976 | 13311264739 | $11.78 | ENDED | Shop at ECS Tuning | |||
| 11 | Connector | D=12MM | 1 | 08/1976 | 13311263262 | $5.23 | ENDED | Shop at ECS Tuning | ||
| 12 | Hose clamp | 2 | 08/1976 | 13311265779 | $1.73 | ENDED | Shop at ECS Tuning | |||
| 13 | Fuel hose | 8X13MM | X | 08/1976 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 14 | Pipe clamp | 1 | 08/1976 | 11531257511 | ENDED | Shop at ECS Tuning | ||||
| 15 | Fuel return line | 1 | 08/1976 | 13311264815 | $17.47 | Shop at ECS Tuning | ||||
| 16 | Cap nut | AL8 | 1 | 08/1976 | 07119970258 | ENDED | Shop at ECS Tuning | |||

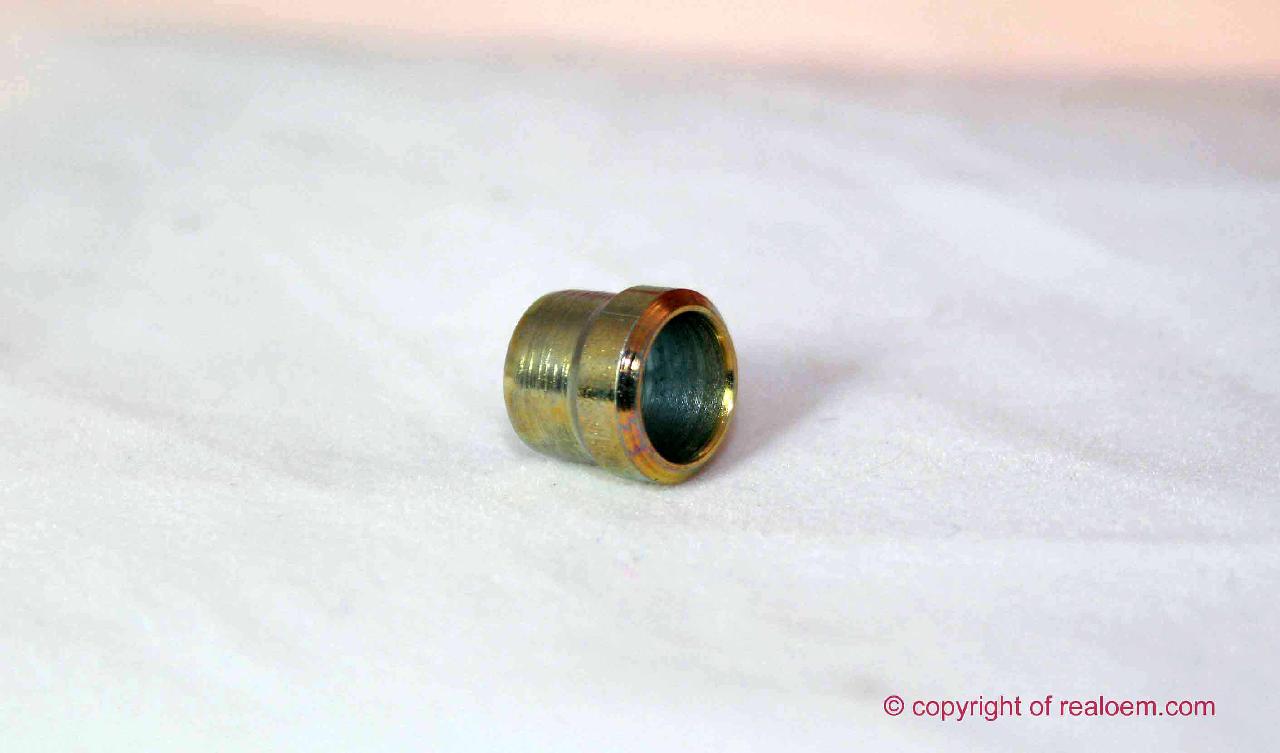

| 17 | Slip ring | L8 | 1 | 08/1976 | 07119970111 | $1.95 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520i Fuel pipe?
- This technical diagram illustrates the Fuel pipe within the Fuel preparation system group for the 5 Series E12 520i produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Pressure hose assy (Part #13311266272).
- Which models use the hardware listed in this Fuel pipe?
- The hardware and components featured in the Fuel pipe are specific to the 5 Series E12 520i produced during 1976. These technical specifications ensure that parts like the Pressure hose assy (13311266272) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipe assembly?
- Each item in the Fuel pipe corresponds to the numbered list below the illustration. For the 5 Series E12 520i, you can identify the Pressure hose assy by locating its position on the schematic, which then links to the official BMW part number 13311266272 for the Fuel preparation system section.
