Throttle Housing Assy for BMW 3 Series E21 320i (1978)

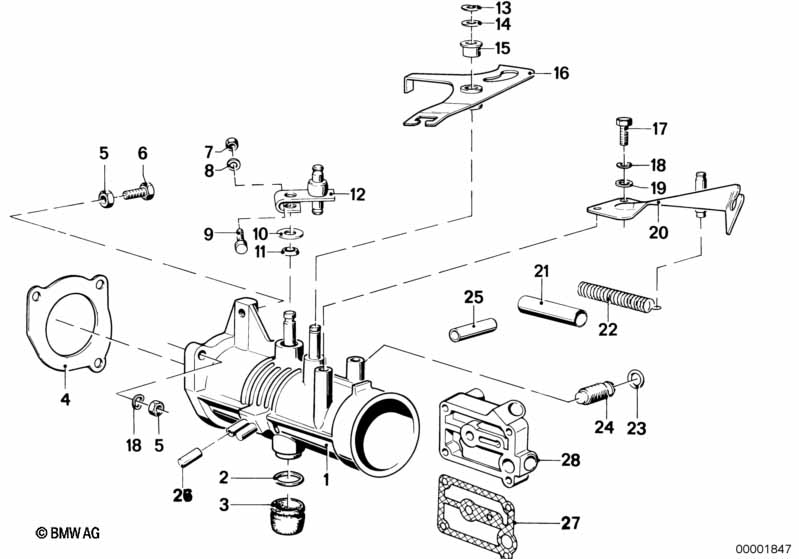

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 13541261377 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 08/1977 | 13541266910 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 1 | 13541262621 | Shop at ECS Tuning | ||||||
| 03 | Cap | 1 | 13541258015 | Shop at ECS Tuning | ||||||
| 04 | Gasket Asbestos Free | 1 | 13541257852 | $47.86 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNNIV SI | 5 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5 | 1 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 08 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 08 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Clamping bolt | 1 | 13541255749 | ENDED | Shop at ECS Tuning | |||||
| 10 | Shim | 18X8X0,5 | 1 | 13541312415 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket ring | 2 | 13541257265 | ENDED | Shop at ECS Tuning | |||||
| 12 | Throttle lever | 1 | 13541261671 | $36.93 | ENDED | Shop at ECS Tuning | ||||
| 13 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 1 | 13110542303 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bush | 2 | 13111276960 | ENDED | Shop at ECS Tuning | |||||
| 16 | Lever | 1 | 13541261379 | $12.50 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Spring washer Black | B6-ZN | 7 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Washer | 5.3-140 HV-ZNS | 7 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 18 | Wave washer | B6-ZNS3 | 7 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 19 | Washer | 1 | 13541264776 | ENDED | Shop at ECS Tuning | |||||
| 20 | Holder | 1 | 13541263702 | $10.16 | ENDED | Shop at ECS Tuning | ||||
| 21 | Absorber | 2 | 13541264214 | $2.67 | ENDED | Shop at ECS Tuning | ||||
| 22 | Tension spring | 2 | 13541261710 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 23 | O-ring | 9,25X1,78 | 1 | 13541261197 | ENDED | Shop at ECS Tuning | ||||
| 23 | O-ring | 9,25X1,78/FPM | 1 | 17211742635 | $0.80 | Shop at ECS Tuning | ||||
| 24 | Throttle screw | 1 | 13541261429 | $21.87 | ENDED | Shop at ECS Tuning | ||||
| 24 | Throttle screw | 1 | 13541267667 | $19.67 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 25 | Cap | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 26 | Cap | D=5,0MM | 1 | 08/1977 | 11611437694 | $3.39 | Shop at ECS Tuning | |||
| 27 | Gasket | 1 | 13541263649 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 28 | Cover | 1 | 13541263651 | ENDED | Shop at ECS Tuning | |||||
