Volume air flow sensor for BMW 5 Series E28 520i (1982)

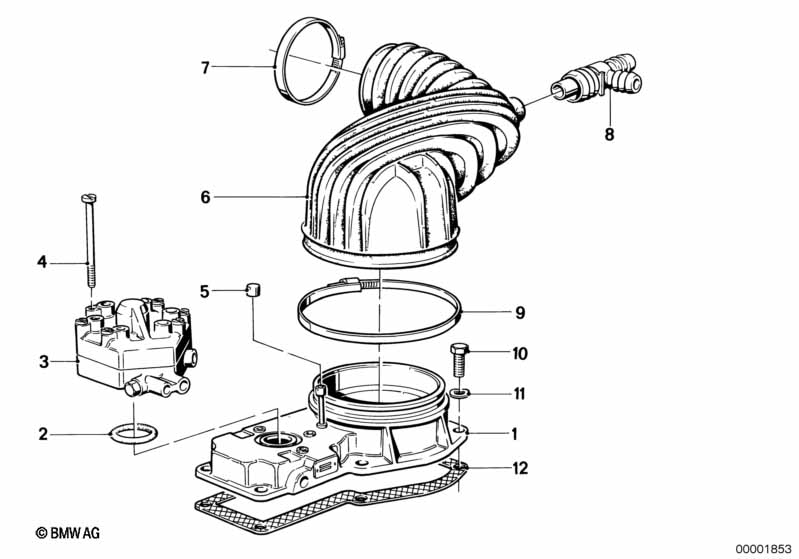

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volume air flow sensor | 1 | 09/1982 | 13511278735 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 32,5X29,5X1,5 | 1 | 09/1982 | 13511271315 | $3.03 | ENDED | Shop at ECS Tuning | ||
| 03 | Volume distributor | 1 | 09/1982 | 13511278736 | ENDED | Shop at ECS Tuning | ||||
| 03 | Volume distributor | 1 | 09/1982 | 13519056612 | $1216.44 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister-head screw | M5X50 | 3 | 09/1982 | 07119920027 | $3.42 | Shop at ECS Tuning | |||
| 05 | Cap | 1 | 09/1982 | 13512458935 | ENDED | Shop at ECS Tuning | ||||
| 06 | Suction hood | 1 | 09/1982 | 13511276613 | $29.02 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L71-78 | 1 | 09/1982 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| 08 | T-Connector | 1 | 09/1982 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning | |||
| 09 | Hose clamp | L110-140 | 1 | 09/1982 | 13511262642 | $3.52 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex bolt | M6X20-8.8-ZNS | 6 | 09/1982 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 11 | Spring washer Black | B6-ZN | 6 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 11 | Washer | 5.3-140 HV-ZNS | 6 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 11 | Wave washer | B6-ZNS3 | 6 | 09/1982 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 12 | Gasket Asbestos Free | 1 | 09/1982 | 13511262077 | $2.96 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Volume air flow sensor?
- This technical diagram illustrates the Volume air flow sensor within the Fuel preparation system group for the 5 Series E28 520i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Volume air flow sensor (Part #13511278735).
- Which models use the hardware listed in this Volume air flow sensor?
- The hardware and components featured in the Volume air flow sensor are specific to the 5 Series E28 520i produced during 1982. These technical specifications ensure that parts like the Volume air flow sensor (13511278735) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Volume air flow sensor assembly?
- Each item in the Volume air flow sensor corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Volume air flow sensor by locating its position on the schematic, which then links to the official BMW part number 13511278735 for the Fuel preparation system section.
