Addit.air slide valve/warm-up regulator for BMW 3 Series E21 323i (1982)

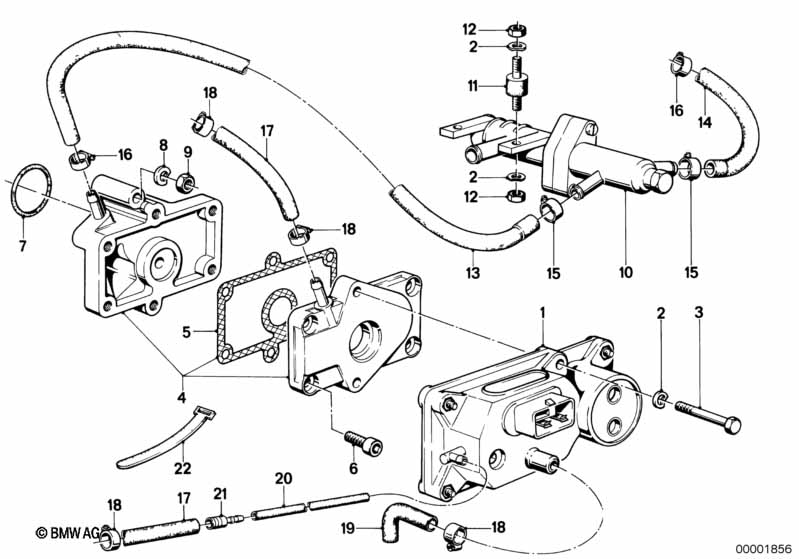

This Addit.air slide valve/warm-up regulator technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulator warm-up-phase | 1 | 09/1981 | 13631359571 | $602.26 | ENDED | Shop at ECS Tuning | |||
| 02 | Spring washer Black | B6-ZN | 6 | 09/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 02 | Washer | 5.3-140 HV-ZNS | 6 | 09/1981 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 02 | Wave washer | B6-ZNS3 | 6 | 09/1981 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 03 | Fillister-head screw | M6X60-8.8-ZNS3 | 2 | 09/1981 | 07119904509 | $2.37 | Shop at ECS Tuning | |||
| 04 | Supporting bracket | 1 | 09/1981 | 13631278264 | $23.16 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket | 1 | 09/1981 | 13631278271 | ENDED | Shop at ECS Tuning | ||||
| 06 | ISA screw | M6X16-8.8-ZNNIV | 4 | 09/1981 | 07129905536 | $0.64 | Shop at ECS Tuning | |||
| 07 | O-ring | 1 | 09/1981 | 13631264271 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 08 | Wave washer | 8,4X15-ZNS3 | 2 | 09/1981 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 09 | Hex nut | M8-8-ZNNIV SI | 2 | 09/1981 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 10 | Additional air slide valve | 1 | 09/1981 | 11531288029 | $188.91 | ENDED | Shop at ECS Tuning | |||
| 11 | Rubber Mounting | 2 | 09/1981 | 17111120224 | $9.23 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M6-8-ZNNIV SI | 2 | 09/1981 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 13 | Hose | 1 | 09/1981 | 11531278297 | $8.42 | ENDED | Shop at ECS Tuning | |||
| 14 | Hose | 1 | 09/1981 | 11531284257 | $4.33 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L15-19 | 2 | 09/1981 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 16 | Hose clamp | L12-15 | 2 | 09/1981 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 17 | Fuel hose | 8X13MM | X | 09/1981 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 18 | Hose clamp | L12-15 | 4 | 09/1981 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 22 | Cable tie | L=292MM/B=4,8MM | 1 | 09/1981 | 61131377134 | $0.77 | Shop at ECS Tuning |
