Throttle Housing Assy for BMW 3 Series E30 318i (1982)

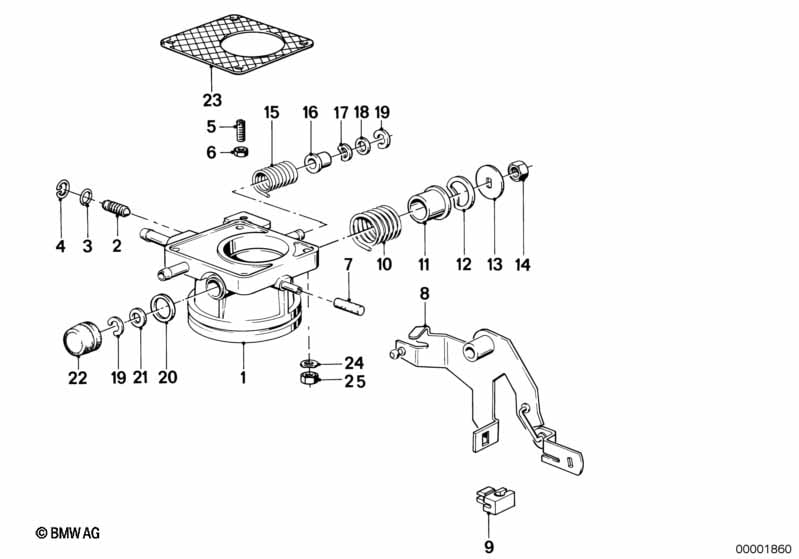

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541270421 | $381.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541286779 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541270421 | $381.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541278564 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and without catalytic converter |
L810A=Yes S199A=Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541286779 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and without catalytic converter and Sweden version |
L804A=Yes S199A=Yes =Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541278564 | ENDED | Shop at ECS Tuning | ||||
| 02 | Throttle screw | 1 | 09/1983 | 13541267667 | $19.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 02 | Throttle screw | 1 | 09/1983 | 13541267667 | $19.67 | ENDED | Shop at ECS Tuning | |||
| 03 | O-ring | 12,4X9,0X1,7 | 1 | 09/1983 | 13111286431 | $7.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 03 | O-ring | 12,4X9,0X1,7 | 1 | 09/1983 | 13111286431 | $7.80 | ENDED | Shop at ECS Tuning | ||
| 04 | Snap ring | A12X0,8 | 1 | 09/1983 | 07119934450 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 04 | Snap ring | A12X0,8 | 1 | 09/1983 | 07119934450 | ENDED, SI 130180644 | Shop at ECS Tuning | |||
| 05 | Grub screw | M5X16 | 1 | 09/1983 | 07119904586 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 05 | Grub screw | M5X16 | 1 | 09/1983 | 07119904586 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | M5-8-ZNNIV SI | 1 | 09/1983 | 07119905729 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 06 | Hex nut | M5-8-ZNNIV SI | 1 | 09/1983 | 07119905729 | Shop at ECS Tuning | ||||
| 07 | Cap | D=3,5MM | 1 | 09/1983 | 11611437560 | $3.39 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 07 | Cap | D=3,5MM | 1 | 09/1983 | 11611437560 | $3.39 | Shop at ECS Tuning | |||
| 08 | Operating lever | 1 | 09/1983 | 13541272678 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 08 | Operating lever | 1 | 09/1983 | 13541272678 | ENDED | Shop at ECS Tuning | ||||
| 09 | NIpple | 2 | 09/1983 | 13541266294 | $3.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 09 | NIpple | 2 | 09/1983 | 13541266294 | $3.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Retainer spring | 1 | 09/1983 | 13541276075 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 10 | Retainer spring | 1 | 09/1983 | 13541276075 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bush | 1 | 09/1983 | 13541266289 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 11 | Bush | 1 | 09/1983 | 13541266289 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 1 | 09/1983 | 13111278346 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 12 | Washer | 1 | 09/1983 | 13111278346 | ENDED | Shop at ECS Tuning | ||||
| 13 | Circlip | 8,4X13 | 1 | 09/1983 | 13541267663 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 13 | Circlip | 8,4X13 | 1 | 09/1983 | 13541267663 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex nut | M8X1 | 1 | 09/1983 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 14 | Hex nut | M8X1 | 1 | 09/1983 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | ||
| 15 | Retainer spring | 1 | 09/1983 | 13541270467 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 15 | Retainer spring | 1 | 09/1983 | 13541270467 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bush | 2 | 09/1983 | 13111276960 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 16 | Bush | 2 | 09/1983 | 13111276960 | ENDED | Shop at ECS Tuning | ||||
| 17 | Wave washer | 1 | 09/1983 | 13541714204 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 17 | Wave washer | 1 | 09/1983 | 13541714204 | ENDED | Shop at ECS Tuning | ||||
| 18 | Shim | 13,5X8X0,5 | 1 | 09/1983 | 13541256351 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 18 | Shim | 13,5X8X0,5 | 1 | 09/1983 | 13541256351 | ENDED | Shop at ECS Tuning | |||
| 19 | Circlip | 7,0 | 1 | 09/1983 | 07119905858 | $0.96 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 19 | Circlip | 7,0 | 1 | 09/1983 | 07119905858 | $0.96 | Shop at ECS Tuning | |||
| 20 | Washer | 1 | 09/1983 | 13541262621 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 20 | Washer | 1 | 09/1983 | 13541262621 | Shop at ECS Tuning | |||||
| 21 | Shim | 19X8X0,1 | X | 09/1983 | 13541256344 | ENDED | Shop at ECS Tuning | |||
| 21 | Shim | 18X8X0,5 | X | 09/1983 | 13541312415 | $1.12 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 21 | Shim | 19X8X0,1 | X | 09/1983 | 13541256344 | ENDED | Shop at ECS Tuning | |||
| 21 | Shim | 18X8X0,5 | X | 09/1983 | 13541312415 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 22 | Cap | 1 | 09/1983 | 13541258015 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 22 | Cap | 1 | 09/1983 | 13541258015 | Shop at ECS Tuning | |||||
| 23 | Gasket Asbestos Free | 1 | 09/1983 | 13541727996 | $1.36 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 23 | Gasket Asbestos Free | 1 | 09/1983 | 13541727996 | $1.36 | Shop at ECS Tuning | ||||
| 24 | Spring washer Black | B6-ZN | 4 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 24 | Washer | 5.3-140 HV-ZNS | 4 | 09/1983 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 24 | Wave washer | B6-ZNS3 | 4 | 09/1983 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 24 | Spring washer Black | B6-ZN | 4 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 24 | Washer | 5.3-140 HV-ZNS | 4 | 09/1983 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 24 | Wave washer | B6-ZNS3 | 4 | 09/1983 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 25 | Hex nut | M6-8-ZNNIV SI | 4 | 09/1983 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 25 | Hex nut | M6-8-ZNNIV SI | 4 | 09/1983 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
