Throttle Housing Assy for BMW 3 Series E30 318i (1987)

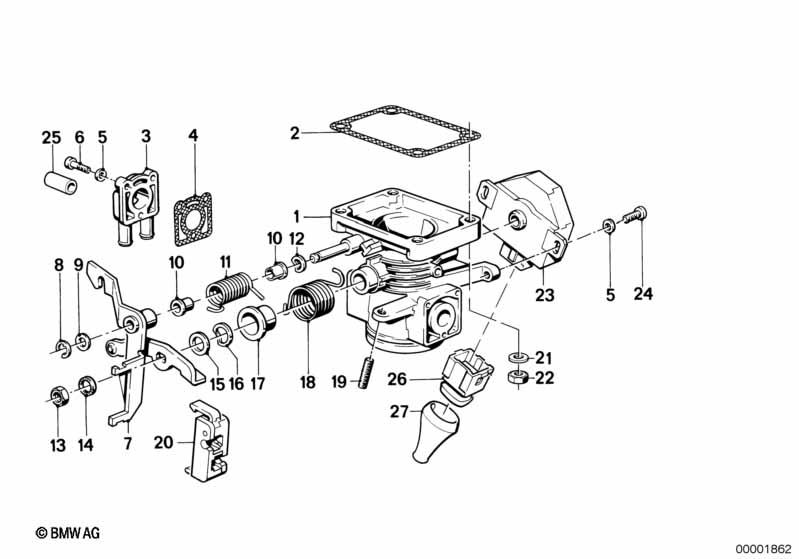

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541287057 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541287302 | $283.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541287057 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Saudi Arabia version |
L810A=Yes =Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1983 | 13541287302 | $283.14 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket Asbestos Free | 1 | 09/1983 | 13541734037 | $1.36 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 09/1983 | 13541285470 | $14.35 | Shop at ECS Tuning | ||||

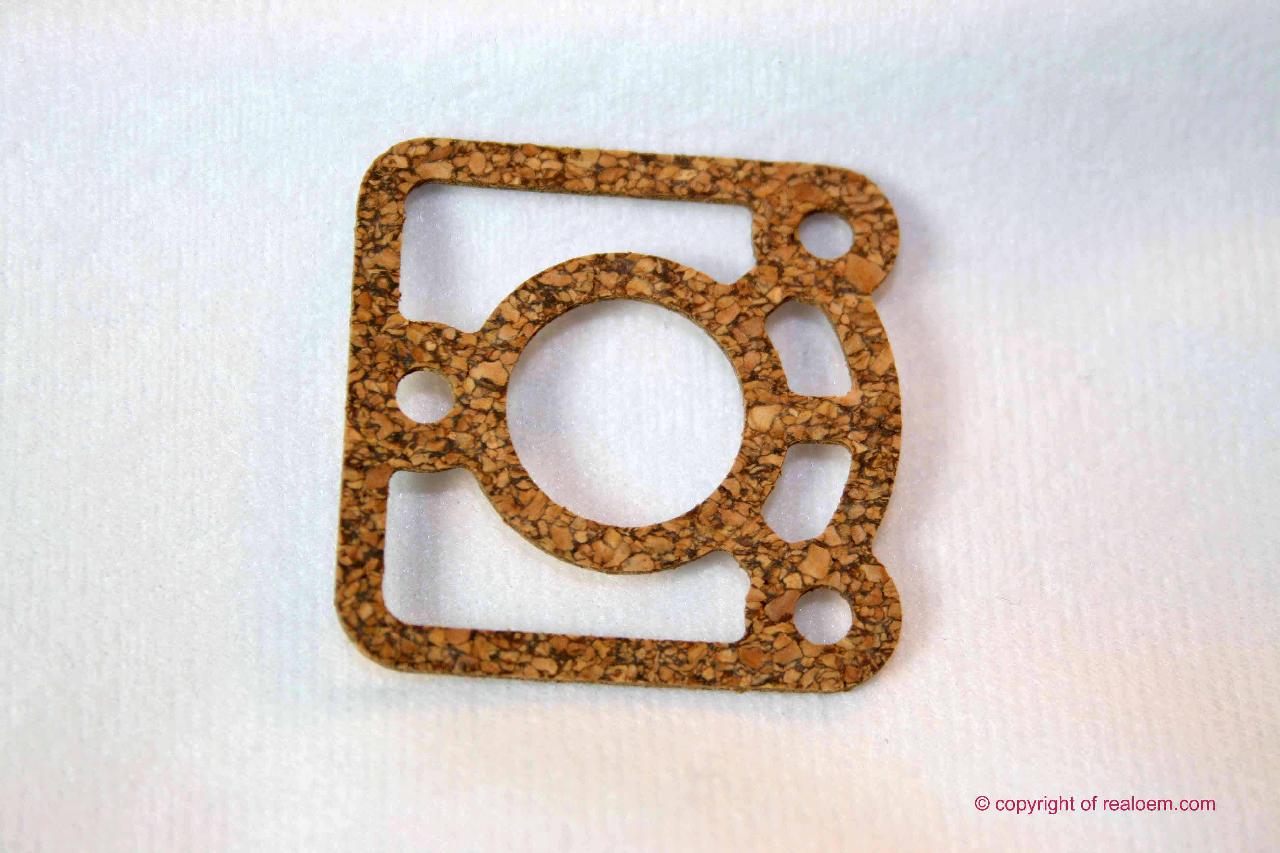

| 04 | Gasket Asbestos Free | 1 | 09/1983 | 13541285471 | $0.79 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M4 TX20 8.8 | 3 | 09/1983 | 13541705561 | $1.62 | Shop at ECS Tuning | |||
| 07 | Operating lever | 1 | 09/1983 | 13541286377 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 07 | Operating lever | 1 | 09/1983 | 13541286377 | ENDED | Shop at ECS Tuning | ||||
| 08 | Circlip | 7,0 | 1 | 09/1983 | 07119905858 | $0.96 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 08 | Circlip | 7,0 | 1 | 09/1983 | 07119905858 | $0.96 | Shop at ECS Tuning | |||
| 09 | Shim | 19X8X0,2 | 1 | 09/1983 | 13541256345 | ENDED | Shop at ECS Tuning | |||
| 09 | Shim | 18X8X0,2 | 1 | 09/1983 | 13541312414 | $1.77 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 09 | Shim | 19X8X0,2 | 1 | 09/1983 | 13541256345 | ENDED | Shop at ECS Tuning | |||
| 09 | Shim | 18X8X0,2 | 1 | 09/1983 | 13541312414 | $1.77 | ENDED | Shop at ECS Tuning | ||
| 11 | Retainer spring | 1 | 09/1983 | 13541278972 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 11 | Retainer spring | 1 | 09/1983 | 13541278972 | ENDED | Shop at ECS Tuning | ||||
| 12 | Wave washer | 1 | 09/1983 | 13541714204 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 12 | Wave washer | 1 | 09/1983 | 13541714204 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex nut | M8X1 | 1 | 09/1983 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 13 | Hex nut | M8X1 | 1 | 09/1983 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | ||
| 14 | Circlip | 8,4X13 | 1 | 09/1983 | 13541267663 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 14 | Circlip | 8,4X13 | 1 | 09/1983 | 13541267663 | ENDED | Shop at ECS Tuning | |||
| 15 | Shim | 19X8X0,1 | 1 | 09/1983 | 13541256344 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 15 | Shim | 19X8X0,1 | 1 | 09/1983 | 13541256344 | ENDED | Shop at ECS Tuning | |||
| 16 | Washer | 1 | 09/1983 | 13111278346 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 16 | Washer | 1 | 09/1983 | 13111278346 | ENDED | Shop at ECS Tuning | ||||
| 17 | Bush | 1 | 09/1983 | 13541714176 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 17 | Bush | 1 | 09/1983 | 13541714176 | ENDED | Shop at ECS Tuning | ||||
| 18 | Retainer spring | 1 | 09/1983 | 13541278971 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 18 | Retainer spring | 1 | 09/1983 | 13541278971 | ENDED | Shop at ECS Tuning | ||||
| 19 | Grub screw | M5X20 | 1 | 09/1983 | 13541278976 | $1.57 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 19 | Grub screw | M5X20 | 1 | 09/1983 | 13541278976 | $1.57 | ENDED | Shop at ECS Tuning | ||
| 20 | NIpple | 2 | 09/1983 | 13541286378 | $3.87 | Shop at ECS Tuning | ||||
| 21 | Spring washer Black | B6-ZN | 4 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 21 | Washer | 5.3-140 HV-ZNS | 4 | 09/1983 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 22 | Hex nut with plate | M6 ZNT | 4 | 09/1983 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
| 23 | Throttle valve switch | 1 | 09/1983 | 13631273265 | $128.75 | +core | Shop at ECS Tuning | |||
| 24 | Fillister-head screw | M4 X 9,2 | 2 | 09/1983 | 13541705562 | $0.93 | Shop at ECS Tuning | |||
| 25 | Cap | D=5,0MM | 1 | 09/1983 | 11611437694 | $3.39 | Shop at ECS Tuning | |||
| 27 | Protection cap | L=17,5MM | 1 | 09/1983 | 61131358603 | $5.32 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Throttle Housing Assy?
- This technical diagram illustrates the Throttle Housing Assy within the Fuel preparation system group for the 3 Series E30 318i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13541287057).
- Which models use the hardware listed in this Throttle Housing Assy?
- The hardware and components featured in the Throttle Housing Assy are specific to the 3 Series E30 318i produced during 1987. These technical specifications ensure that parts like the Throttle Housing Assy (13541287057) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle Housing Assy assembly?
- Each item in the Throttle Housing Assy corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13541287057 for the Fuel preparation system section.
