Fuel tank breath.valve/disturb.air valve for BMW 7 Series E32 750iL (1993)

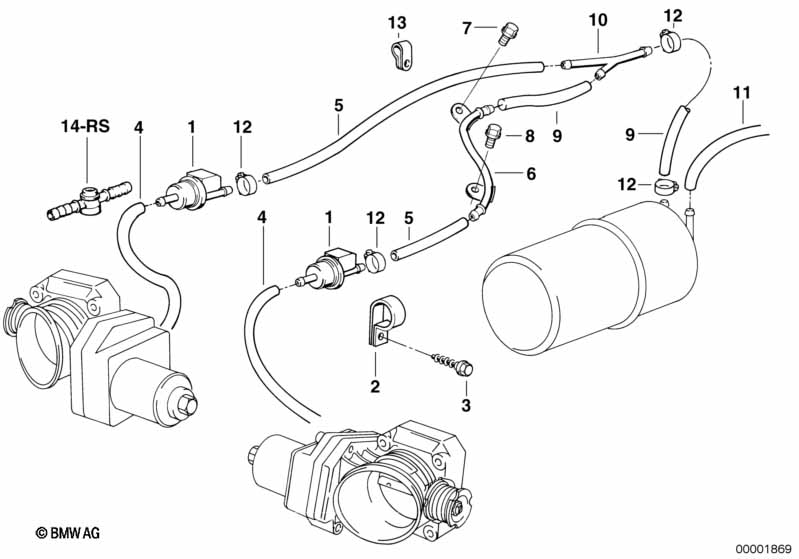

This Fuel tank breath.valve/disturb.air valve technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | BOSCH | 2 | 13901711395 | $155.67 | Shop at ECS Tuning | ||||
| 02 | Clamp | 2 | 13901715628 | $2.24 | ENDED | Shop at ECS Tuning | ||||
| 03 | Screw | K50X13 | 2 | 13901725499 | $0.26 | ENDED | Shop at ECS Tuning | |||
| 04 | Hose | 2 | 13531720187 | $24.58 | Shop at ECS Tuning | |||||
| 05 | Hose with anti-scuffing | 6X11MM | 2 | 13901733164 | $15.63 | ENDED | Shop at ECS Tuning | |||
| 06 | Connection pipe | 1 | 13901720103 | $302.97 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X35-U1-8.8 | 2 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X40-Z3 | 1 | 07119913951 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 10 | Distribution piece | 1 | 13311725381 | $2.27 | Shop at ECS Tuning | |||||
| 10 | Distribution piece | 1 | 13311733990 | $1.28 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Clamp | D=10/6,4 | 2 | 12141305028 | $1.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Fuel tank breath.valve/disturb.air valve?
- This technical diagram illustrates the Fuel tank breath.valve/disturb.air valve within the Fuel preparation system group for the 7 Series E32 750iL produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank breather valve (Part #13901711395).
- Which models use the hardware listed in this Fuel tank breath.valve/disturb.air valve?
- The hardware and components featured in the Fuel tank breath.valve/disturb.air valve are specific to the 7 Series E32 750iL produced during 1993. These technical specifications ensure that parts like the Fuel tank breather valve (13901711395) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank breath.valve/disturb.air valve assembly?
- Each item in the Fuel tank breath.valve/disturb.air valve corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Fuel tank breather valve by locating its position on the schematic, which then links to the official BMW part number 13901711395 for the Fuel preparation system section.
