Fuel injection system for BMW 7 Series E23 732i (1982)

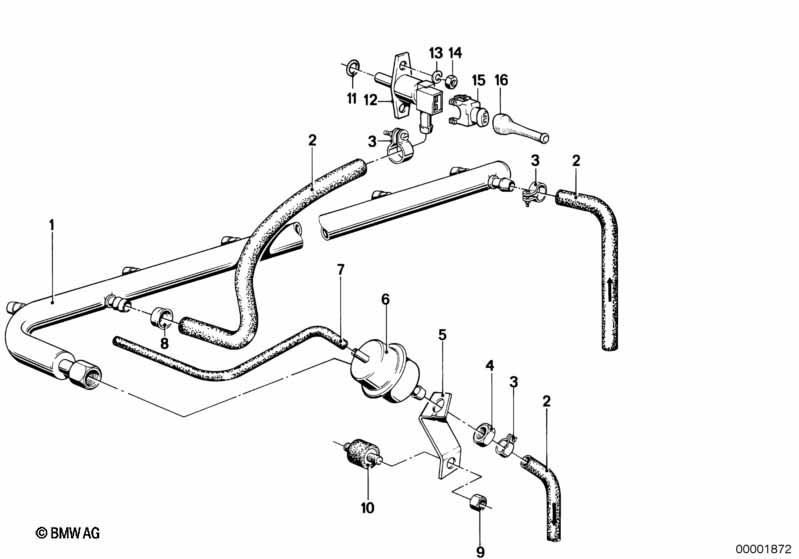

This Fuel injection system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M12X1,5 | 1 | 07119922940 | $1.29 | Shop at ECS Tuning | ||||
| 07 | Vacuum hose black | 3,3X1,8 | X | 11747797175 | $13.51 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 15 | Plug housing | 2 POL. | 1 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 16 | Protection cap | L=12,5MM | 1 | 61131358330 | $5.33 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
