Control unit for BMW 7 Series E23 733i (1985)

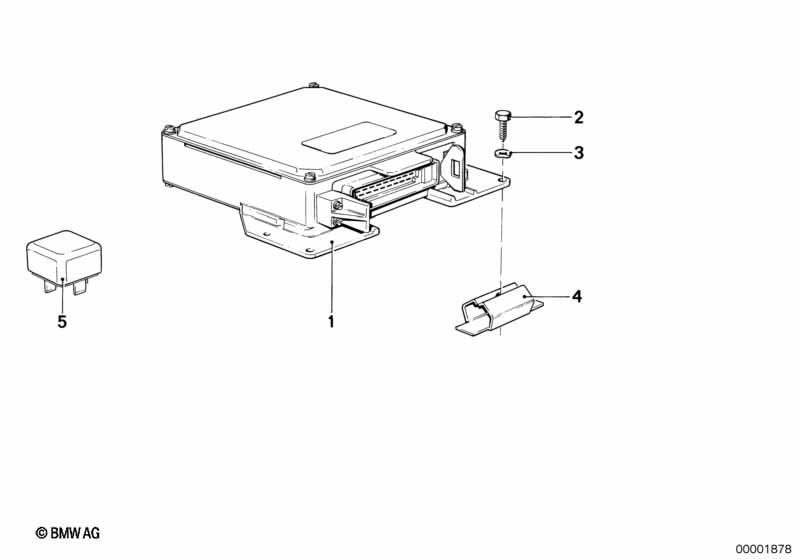

This Control unit technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Control unit | ML2.1 | 1 | 01/1983 | 12140028580 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex head screw | ST5,5X25-C-Z2 | 4 | 07119916957 | $0.30 | ENDED | Shop at ECS Tuning | |||
| 03 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Prestol-cage | A5,6 | 4 | 07129925770 | $1.15 | ENDED | Shop at ECS Tuning | |||
| 05 | Relay | GELB | 1 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Mini-relay | 1 | 61311373588 | $11.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Control unit?
- This technical diagram illustrates the Control unit within the Fuel preparation system group for the 7 Series E23 733i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the AT-Control unit (Part #12140028580).
- Which models use the hardware listed in this Control unit?
- The hardware and components featured in the Control unit are specific to the 7 Series E23 733i produced during 1985. These technical specifications ensure that parts like the AT-Control unit (12140028580) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit assembly?
- Each item in the Control unit corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the AT-Control unit by locating its position on the schematic, which then links to the official BMW part number 12140028580 for the Fuel preparation system section.
