Idle increase for BMW 7 Series E23 733i (1982)

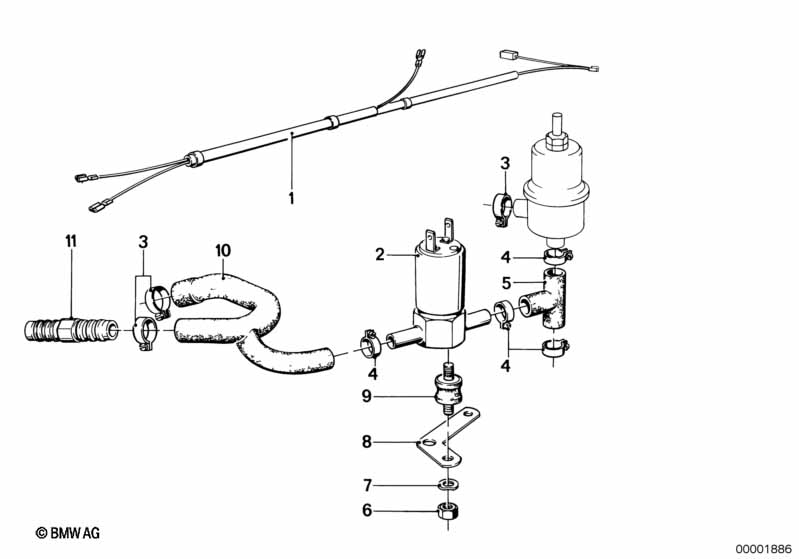

This Idle increase technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO AIR CONDITION | |||||||||
| 01 | Wiring set | 1 | 61111268354 | $17.30 | ENDED | Shop at ECS Tuning | ||||
| 02 | Additional air valve | 1 | 13641276163 | $87.76 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L18-24 | 3 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L15-19 | 5 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 11741266884 | $1.83 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 11611266872 | $2.24 | ENDED | Shop at ECS Tuning | ||||
| 09 | Vibration damper | 1 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 10 | Hose | 1 | 11611266885 | $29.10 | Shop at ECS Tuning | |||||
| 11 | Connection pipe | 1 | 11611266957 | $3.03 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
