Fuel preparation system for BMW 7 Series E23 745i (1987)

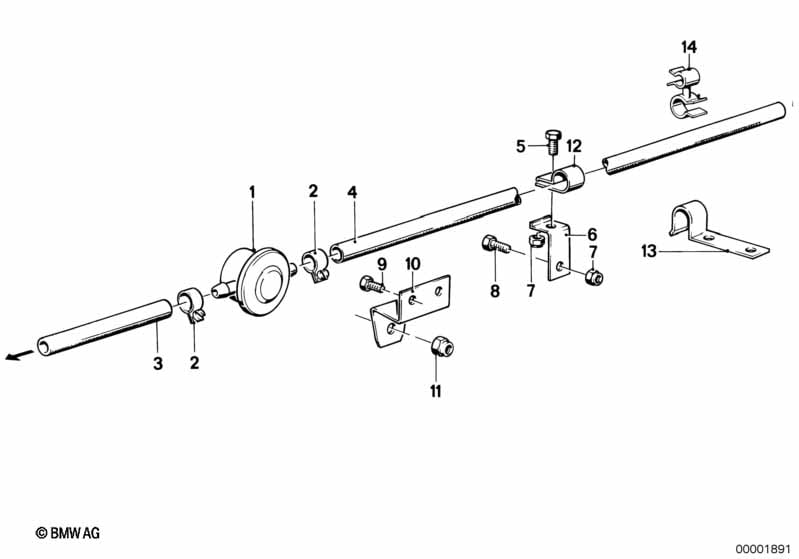

This Fuel preparation system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection piece | 1 | 03/1982 | 13311713470 | $2.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Bracket | 1 | 13311276073 | ENDED | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 13311276072 | ENDED | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 12 | Clamp | 1 | 11431258342 | $1.04 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 13311277291 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 1 | 13311286758 | ENDED | Shop at ECS Tuning | |||||
| 14 | Hose clamp | 13MM-20MM | 1 | 11721708656 | $1.83 | Shop at ECS Tuning |
