Fuel preparation system for BMW 6 Series E24 635CSi

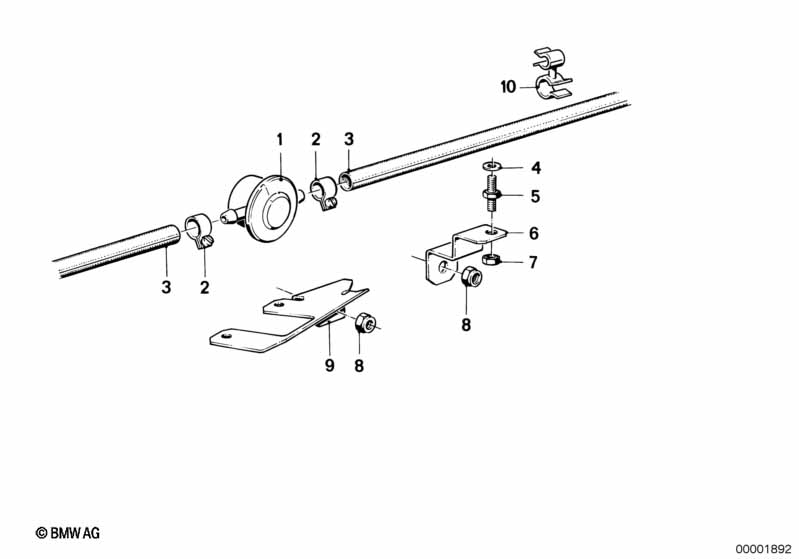

This Fuel preparation system technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Absorber | 1 | 12/1981 | 13311274832 | $70.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Connection piece | 1 | 12/1981 | 09/1982 | 13311713470 | $2.13 | ENDED | Shop at ECS Tuning | ||
| 02 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 8X13MM | X | 09/1982 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 04 | Washer | 8,4 | 1 | 09/1982 | 07119936441 | $0.78 | ENDED | Shop at ECS Tuning | ||
| 05 | Screw | 1 | 12/1981 | 13311276894 | ENDED | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 12/1981 | 13311276071 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-ZNS | 1 | 09/1982 | 07119922856 | $0.56 | ENDED | Shop at ECS Tuning | ||
| 08 | Self-locking hex nut | M8-8-ZNNIV SI | 1 | 09/1982 | 07129905767 | $0.27 | ENDED | Shop at ECS Tuning |
