Volume air flow sensor for BMW 7 Series E23 732i (1982)

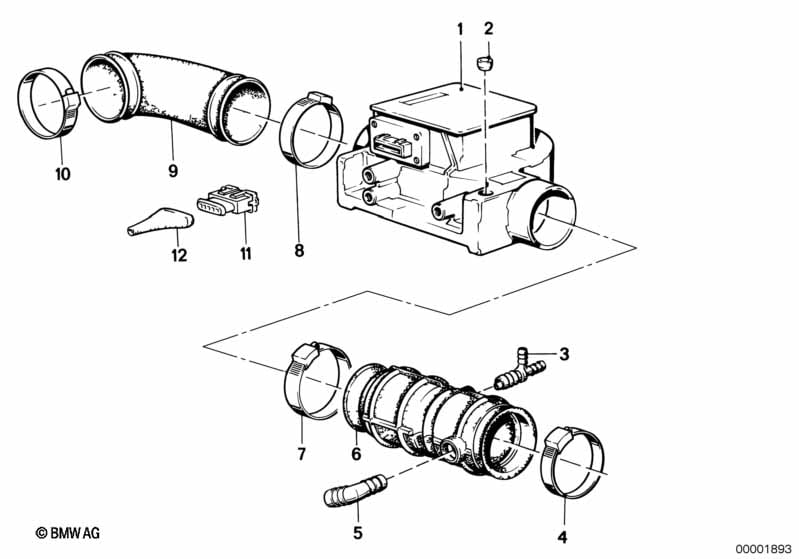

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volume air flow sensor | 1 | 09/1980 | 09/1982 | 13621274697 | $564.81 | Shop at ECS Tuning | |||
| 01 | Volume air flow sensor | 1 | 09/1980 | 09/1982 | 13621274697 | $564.81 | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland or National version Australia |
L804A=Yes L810A=Yes |
|||||||||
| 01 | Volume air flow sensor | 1 | 09/1980 | 13621276113 | $680.76 | Shop at ECS Tuning | ||||
| 02 | Cap | 1 | 13621363874 | $7.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | T-Connector | 1 | 09/1980 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose | D=15MM | 1 | 09/1980 | 11631272624 | $3.20 | Shop at ECS Tuning | |||
| -- | Hose elbow | D=15MM | 1 | 09/1980 | 11631272626 | $9.08 | Shop at ECS Tuning | |||
| 04 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Support | 1 | 09/1980 | 13541272473 | $1.43 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Vacuum hose white | 3,3X1,8 | X | 09/1980 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| -- | Vent hose | D=20MM | 1 | 09/1980 | 11151276485 | $7.54 | Shop at ECS Tuning | |||
| -- | Connection piece | D=4MM | 1 | 09/1980 | 11151276486 | $1.08 | Shop at ECS Tuning | |||
| 06 | Rubber boot | 1 | 09/1980 | 13541272472 | $17.86 | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 06 | Rubber boot | 1 | 13541707080 | $21.73 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 09/1980 | 13711261370 | $29.23 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 09 | Hose | 1 | 09/1980 | 13711261370 | $29.23 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 10 | Plug housing | 1 | 12521706097 | $2.03 | ENDED | Shop at ECS Tuning | ||||
| 11 | Protection cap | L=27,0MM | 1 | 61131270973 | $6.33 | Shop at ECS Tuning | ||||
