Accelerator pedal for BMW 7 Series E23 733i (1981)

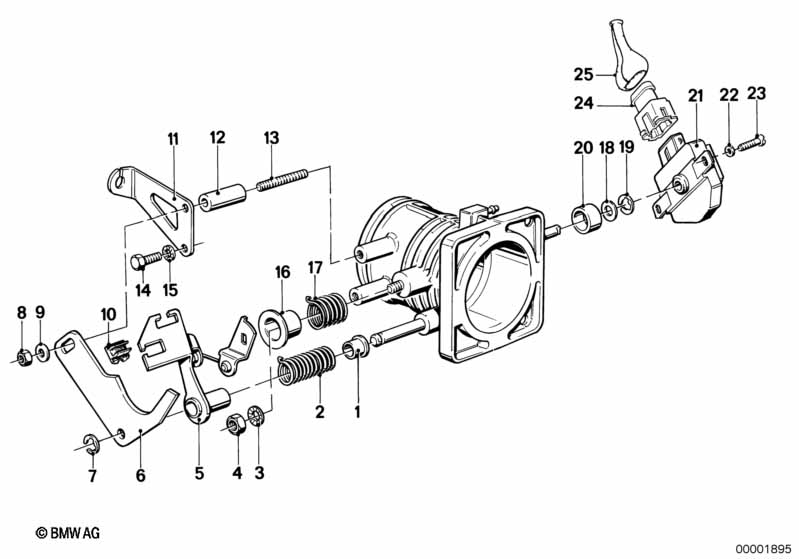

This Accelerator pedal technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bush | 2 | 09/1981 | 13111276960 | ENDED | Shop at ECS Tuning | ||||
| 02 | Retainer spring | 1 | 09/1981 | 13541274065 | ENDED | Shop at ECS Tuning | ||||
| 03 | Circlip | 8,4X13 | 1 | 09/1981 | 13541267663 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M8X1 | 1 | 09/1981 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | ||
| 05 | Operating lever | 1 | 09/1981 | 13541274059 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stopper | 1 | 09/1981 | 13541274066 | ENDED | Shop at ECS Tuning | ||||
| 07 | Circlip | 7,0 | 2 | 09/1981 | 07119905858 | $0.96 | Shop at ECS Tuning | |||
| 08 | Hex nut | M6-8-ZNNIV SI | 5 | 09/1981 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 09 | Washer | 6,4 | 1 | 09/1981 | 06/1986 | 07119936425 | $0.09 | ENDED | Shop at ECS Tuning | |
| 10 | Bearing accelator bowden cable | SCHWARZ | 2 | 09/1981 | 13541747519 | $0.58 | Shop at ECS Tuning | |||
| 11 | Bracket | 1 | 09/1981 | 13541274069 | ENDED | Shop at ECS Tuning | ||||
| 12 | Spacer bush | 1 | 09/1981 | 13541274068 | ENDED | Shop at ECS Tuning | ||||
| 13 | Stud bolt | M6X50 | 1 | 09/1981 | 06/1986 | 07129908106 | $0.60 | ENDED | Shop at ECS Tuning | |
| 14 | Hex bolt | M6X12 | 1 | 09/1981 | 13541267670 | ENDED | Shop at ECS Tuning | |||
| 15 | Circlip | 6,4X10 | 1 | 09/1981 | 13541267669 | ENDED | Shop at ECS Tuning | |||
| 16 | Bush | 1 | 09/1981 | 13541266289 | ENDED | Shop at ECS Tuning | ||||
| 17 | Retainer spring | 1 | 09/1981 | 13541270886 | $1.33 | ENDED | Shop at ECS Tuning | |||
| 18 | Shim | 19X8X0,1 | X | 09/1981 | 13541256344 | ENDED | Shop at ECS Tuning | |||
| 18 | Shim | 19X8X0,2 | X | 09/1981 | 13541256345 | ENDED | Shop at ECS Tuning | |||
| 18 | Shim | 13,5X8X0,5 | X | 09/1981 | 13541256351 | ENDED | Shop at ECS Tuning | |||
| 18 | Shim | 18X8X0,2 | X | 09/1981 | 13541312414 | $1.77 | ENDED | Shop at ECS Tuning | ||
| 18 | Shim | 13,5X8X1,5 | X | 09/1981 | 13541312434 | $4.12 | ENDED | Shop at ECS Tuning | ||
| 19 | Lock Ring | 8X0,8 | 1 | 09/1981 | 07119934035 | $0.38 | Shop at ECS Tuning | |||
| 21 | Throttle valve switch | 1 | 09/1981 | 13631273265 | $128.75 | +core | Shop at ECS Tuning | |||
| 23 | Fillister-head screw | M4 X 9,2 | 2 | 09/1981 | 13541705562 | $0.93 | Shop at ECS Tuning | |||
| 24 | Plug housing | 3 POL. | 1 | 09/1981 | 06/1986 | 12521706068 | $8.52 | ENDED | Shop at ECS Tuning | |
| 25 | Protection cap | L=17,5MM | 1 | 09/1981 | 61131358603 | $5.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
