Control unit DME for BMW 6 Series E24 M635CSi (1988)

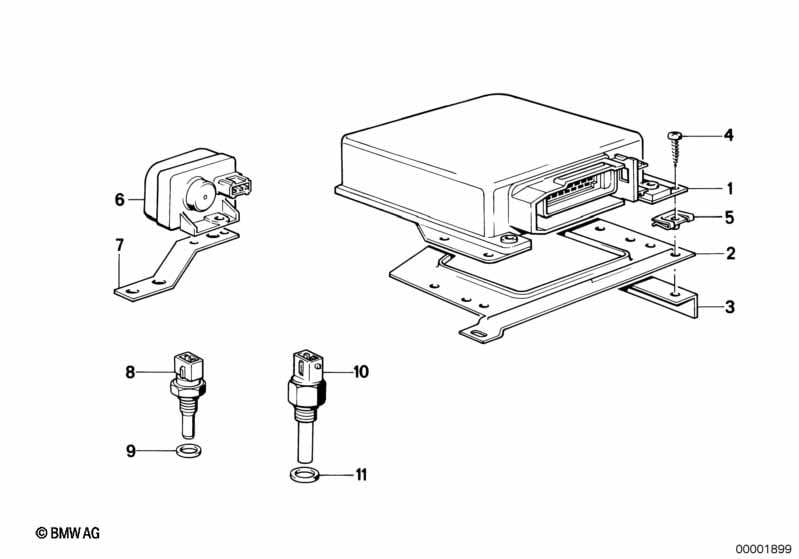

This Control unit DME technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit DME | 1 | 12141307029 | ENDED | Shop at ECS Tuning | |||||
| 01 | Control unit | 1 | 12141309927 | $1729.37 | ENDED | Shop at ECS Tuning | ||||
| 01 | AT-Control unit | 1 | 12141312219 | $1538.77 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Control unit DME | 1 | 12141307029 | ENDED | Shop at ECS Tuning | |||||
| 01 | Control unit | 1 | 12141309927 | $1729.37 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Prestol-cage | A5,6 | 4 | 07129925770 | $1.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuel injection system-ressure sensor | 1 | 13621286679 | $167.72 | Shop at ECS Tuning | |||||
| 08 | Temperature sensor, water | 1 | 13621709967 | Shop at ECS Tuning | ||||||
| 09 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Temperature-time switch | 1 | 13621362599 | $72.54 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
