Valves/Pipes of fuel injection system for BMW 7 Series E23 728i (1982)

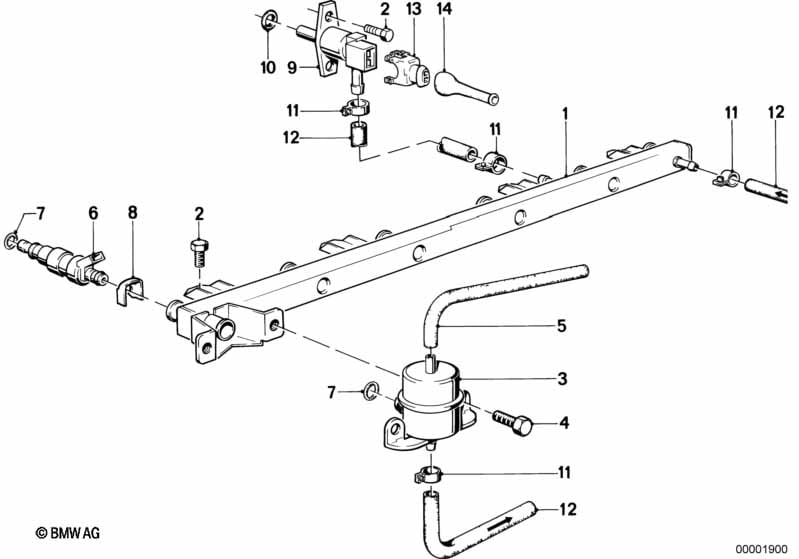

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 09/1982 | 13531717071 | $360.66 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X14 | 4 | 09/1982 | 06/1986 | 07119913410 | $0.25 | ENDED | Shop at ECS Tuning | |
| 03 | Pressure regulator | 3,0BAR | 1 | 09/1982 | 01/1986 | 13531711541 | $56.93 | Shop at ECS Tuning | ||
| 03 | Pressure regulator | 3,0BAR | 1 | 09/1982 | 01/1986 | 13531284897 | $105.75 | ENDED | Shop at ECS Tuning | |
| only applies to | ||||||||||
| 04 | Hex bolt with washer | M6X12-Z3-1 | 2 | 09/1982 | 07119915033 | $1.07 | Shop at ECS Tuning | |||
| 05 | Vacuum hose black | 3,3X1,75 | X | 09/1982 | 51731257971 | $4.59 | ENDED | Shop at ECS Tuning | ||
| 05 | Vacuum hose black | 3,5X1,8 | X | 09/1982 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 06 | Injection valve | 6 | 09/1982 | 01/1986 | 13641276149 | $199.61 | Shop at ECS Tuning | |||
| 07 | O-ring | 7,52X3,53 | X | 09/1982 | 13641730767 | $3.75 | Shop at ECS Tuning | |||
| 08 | Clamp | 6 | 09/1982 | 13531274729 | $0.67 | Shop at ECS Tuning | ||||
| 09 | Starter valve | X | 09/1982 | 13641358917 | $106.30 | Shop at ECS Tuning | ||||
| 10 | O-ring | 6.5X2.0 | 1 | 09/1982 | 11611254062 | $1.33 | ENDED | Shop at ECS Tuning | ||
| 11 | Hose clamp | L12-15 | 3 | 09/1982 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 12 | Fuel hose | 8X13MM | X | 09/1982 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 13 | Plug housing | 2-POL | 7 | 09/1982 | 06/1986 | 12521706121 | $5.77 | ENDED | Shop at ECS Tuning | |
| 14 | Protection cap | L=12,5MM | 7 | 09/1982 | 61131358330 | $5.33 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Valves/Pipes of fuel injection system?
- This technical diagram illustrates the Valves/Pipes of fuel injection system within the Fuel preparation system group for the 7 Series E23 728i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Injection tube (Part #13531717071).
- Which models use the hardware listed in this Valves/Pipes of fuel injection system?
- The hardware and components featured in the Valves/Pipes of fuel injection system are specific to the 7 Series E23 728i produced during 1982. These technical specifications ensure that parts like the Injection tube (13531717071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valves/Pipes of fuel injection system assembly?
- Each item in the Valves/Pipes of fuel injection system corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Injection tube by locating its position on the schematic, which then links to the official BMW part number 13531717071 for the Fuel preparation system section.
