Throttle valve switch for BMW 6 Series E24 633CSi (1984)

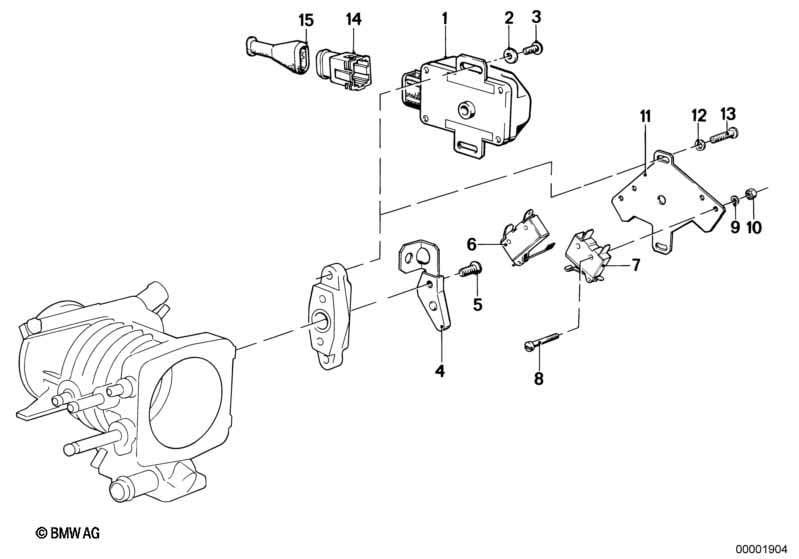

This Throttle valve switch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Washer | 9X4,3X0,8-200HV | 2 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 14 | Plug housing | 1 | 12521706096 | $7.59 | Shop at ECS Tuning | |||||
| 15 | Protection cap | L=17,5MM | 1 | 61131358603 | $5.32 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Throttle valve switch?
- This technical diagram illustrates the Throttle valve switch within the Fuel preparation system group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #07119904205).
- Which models use the hardware listed in this Throttle valve switch?
- The hardware and components featured in the Throttle valve switch are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Washer (07119904205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle valve switch assembly?
- Each item in the Throttle valve switch corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 07119904205 for the Fuel preparation system section.
