Fuel supply/filter for BMW 3 Series E30 318i (1987)

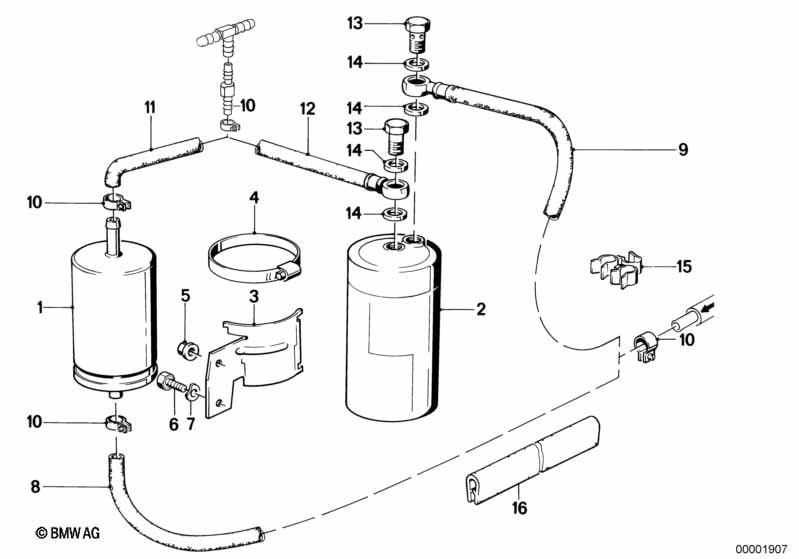

This Fuel supply/filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | D=80MM | 1 | 09/1989 | 13321270038 | $44.04 | ENDED | Shop at ECS Tuning | ||
| 02 | Fuel strainer with pre separator | D=82MM | 1 | 13321278330 | $75.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket fuel strainer | 1 | 09/1989 | 13321284682 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 04 | Hose clamp | L77-84 | 1 | 09/1989 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 05 | Hex nut with plate | M6 | 1 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 09 | Fuel pipe | 1 | 13321289037 | $17.20 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 12 | Fuel pipe | 1 | 13311286583 | $20.50 | Shop at ECS Tuning | |||||
| 12 | Fuel pipe | 1 | 13321289037 | $17.20 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hollow bolt | M14X1,5X26 | 2 | 32416852469 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | A14X18-AL | 4 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | 4 | 13511304359 | $2.64 | Shop at ECS Tuning | |||||
| 15 | Bracket fuel pipe | 1 | 13541287046 | $1.57 | ENDED | Shop at ECS Tuning | ||||
| 16 | Edge protection | GRAU | X | 51721832146 | $5.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
