Idle increase for BMW 3 Series E30 320i (1989)

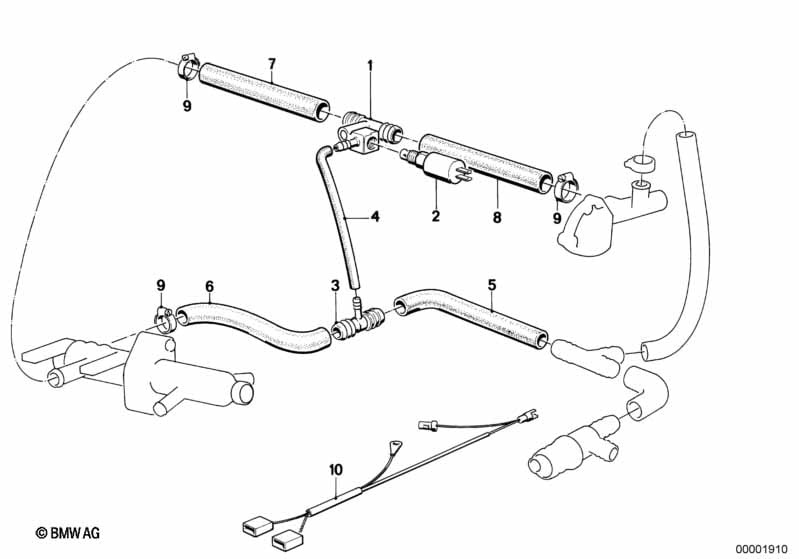

This Idle increase technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO AIR CONDITION | |||||||||
| 01 | Connection piece | 1 | 64511286808 | $11.98 | Shop at ECS Tuning | |||||
| 02 | Valve | 1 | 64511286807 | $115.64 | Shop at ECS Tuning | |||||
| 03 | T-Connector | 1 | 64511286809 | $1.86 | Shop at ECS Tuning | |||||
| 04 | Fuel hose | 6X11MM | 1 | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 11611284662 | $16.22 | Shop at ECS Tuning | |||||
| 06 | Hose | 1 | 11611284662 | $16.22 | Shop at ECS Tuning | |||||
| 07 | Hose | 1 | 11611284663 | $18.20 | Shop at ECS Tuning | |||||
| 08 | Hose | 1 | 11611284663 | $18.20 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | L18-24 | 3 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Cable harness | 1 | 12511288492 | Shop at ECS Tuning | ||||||
