Volume air flow sensor for BMW 6 Series E24 628CSi (1987)

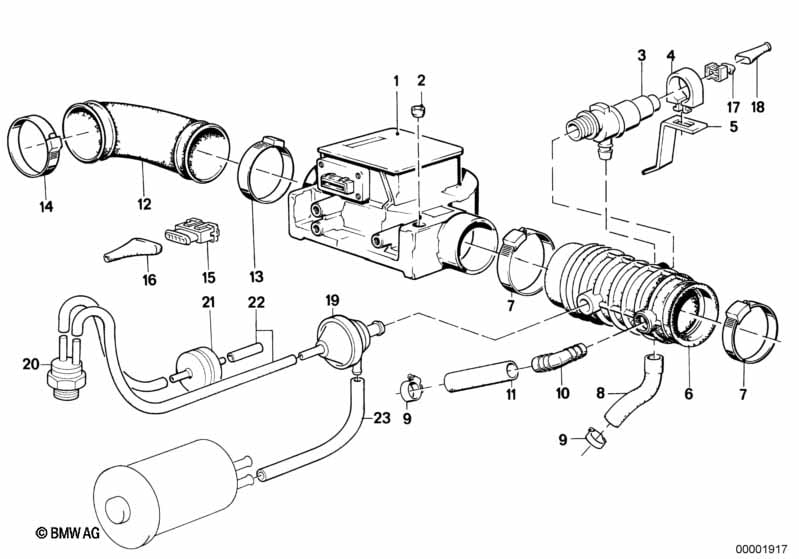

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 19 | Air valve | 1 | 11631706273 | $40.73 | +core | Shop at ECS Tuning | ||||
| 20 | Thermovalve | 45CEL | 1 | 11741264132 | $136.21 | ENDED | Shop at ECS Tuning | |||
| 21 | Retarding valve | 60S | 1 | 11631711519 | $14.14 | ENDED | Shop at ECS Tuning | |||
| 22 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 23 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
