Valves/Pipes of fuel injection system for BMW 3 Series E30 325i (1992)

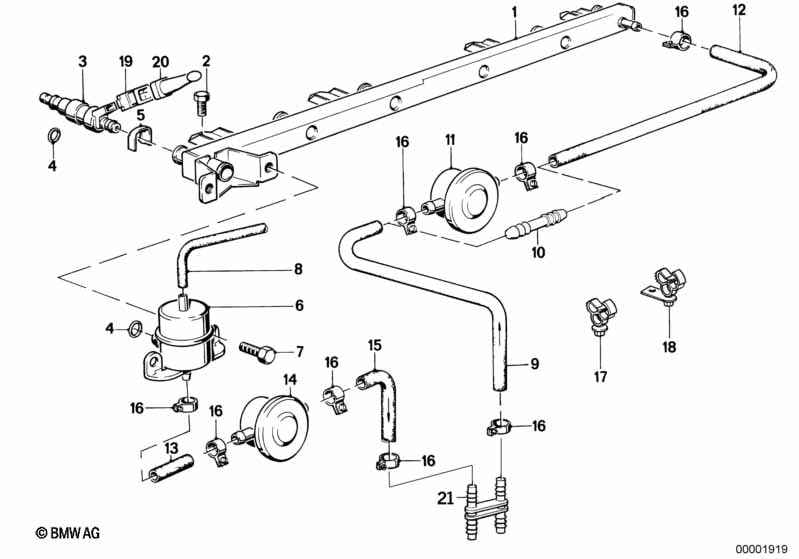

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 05/1988 | 13531719981 | $81.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M6X12 | 4 | 07119913442 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 03 | Injection valve | LUCAS | 6 | 13641731357 | $122.42 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 3,0BAR | 1 | 13531711541 | $56.93 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 10 | Connection piece | 1 | 13311713470 | $2.13 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 17 | Wire holder, two-place | 1 | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| 18 | Bracket fuel pipe | 1 | 13311714455 | $2.27 | Shop at ECS Tuning | |||||
| 20 | Protection cap | L=12,5MM | 6 | 61131358330 | $5.33 | Shop at ECS Tuning | ||||
| 21 | Connector | 1 | 13311709577 | $7.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
