Volume air flow sensor for BMW 7 Series E23 735i (1989)

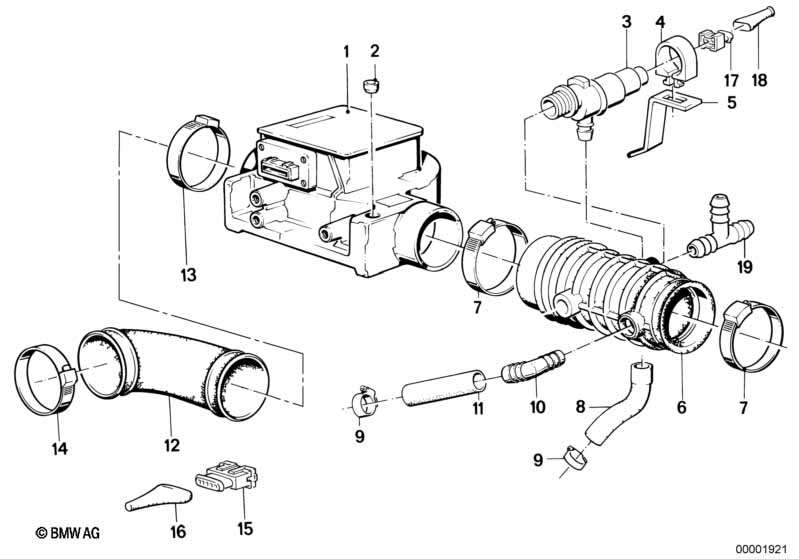

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volume air flow sensor | 1 | 01/1985 | 13627547981 | $580.29 | Shop at ECS Tuning | ||||
| 02 | Cap | 1 | 13621363874 | $7.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | L-shape idle regulating valve | 1 | 01/1985 | 13411286065 | $213.68 | ENDED, SI 130184338 | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 1 | 01/1985 | 13411705564 | $2.40 | +core | Shop at ECS Tuning | |||
| 05 | Bracket idle adjuster | 1 | 01/1985 | 13411710794 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 06 | Rubber boot | 1 | 01/1981 | 13541272472 | $17.86 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L77-84 | 2 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 08 | Hose | 1 | 01/1985 | 13411710793 | $27.35 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L16-30 | 2 | 01/1985 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 10 | Support | 1 | 13541272473 | $1.43 | Shop at ECS Tuning | |||||
| 11 | Vent hose | D=20MM | 1 | 01/1985 | 11151276485 | $7.54 | Shop at ECS Tuning | |||
| 12 | Hose | 1 | 01/1981 | 13711261370 | $29.23 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 15 | Plug housing | 1 | 12521706097 | $2.03 | ENDED | Shop at ECS Tuning | ||||
| 16 | Protection cap | L=27,0MM | 1 | 61131270973 | $6.33 | Shop at ECS Tuning | ||||
| 17 | Plug housing | 1 | 01/1985 | 12521706096 | $7.59 | Shop at ECS Tuning | ||||
| 18 | Protection cap | L=17,5MM | 1 | 01/1985 | 61131358603 | $5.32 | Shop at ECS Tuning | |||
| 19 | T-Connector | 1 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Volume air flow sensor?
- This technical diagram illustrates the Volume air flow sensor within the Fuel preparation system group for the 7 Series E23 735i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Volume air flow sensor (Part #13627547981).
- Which models use the hardware listed in this Volume air flow sensor?
- The hardware and components featured in the Volume air flow sensor are specific to the 7 Series E23 735i produced during 1989. These technical specifications ensure that parts like the Volume air flow sensor (13627547981) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Volume air flow sensor assembly?
- Each item in the Volume air flow sensor corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Volume air flow sensor by locating its position on the schematic, which then links to the official BMW part number 13627547981 for the Fuel preparation system section.
