Control unit idling control for BMW 3 Series E30 325e (1987)

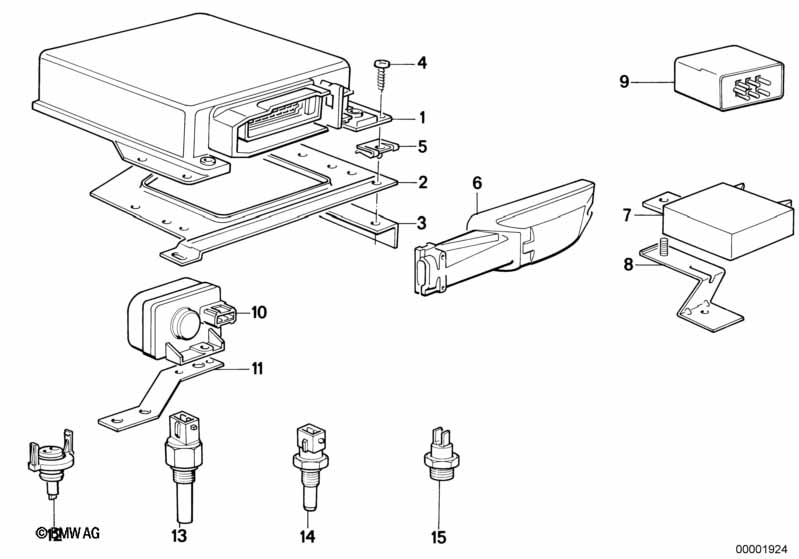

This Control unit idling control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | MOTRONIC REFER HG 12 | |||||||||
| 02 | Mounting plate | 1 | 13621286077 | $6.90 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket | 1 | 13611717235 | $4.07 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST6,3X19-C | 6 | 07119916830 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST6,3-1-ZNS3 | 6 | 07129904231 | Shop at ECS Tuning | |||||
| 06 | Plug terminal control unit DDE | 35POL | 1 | 12521270971 | $27.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 14 | Temperature sensor, water | 1 | 12/1986 | 13621709967 | Shop at ECS Tuning | |||||
