Control unit for BMW 5 Series E28 535i (1985)

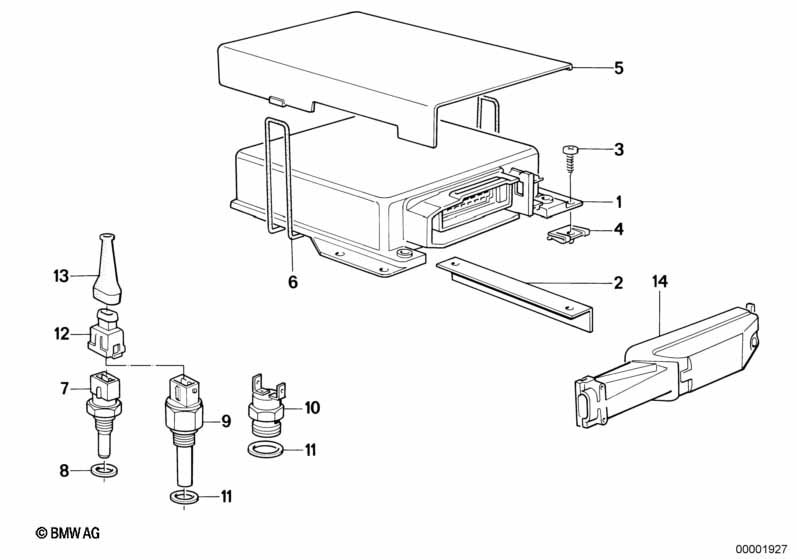

This Control unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to FUEL INJECTION L-JETRONIC FUEL INJECTION SYSTEM MOTRONIC |
|||||||||
| 01 | AT-Control unit | 1 | 12141706192 | $1438.26 | ENDED | Shop at ECS Tuning | ||||
| 01 | Control unit | 1 | 12141706194 | $1438.26 | Shop at ECS Tuning | |||||
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 01 | Control unit | 1 | 12141707208 | $1199.70 | Shop at ECS Tuning | |||||
| 02 | Holder | 2 | 12141286690 | $2.30 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST6,3X19-C | 4 | 07119916830 | $0.36 | Shop at ECS Tuning | ||||
| 04 | C-clip nut | M6-ZNS3 | 4 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Covering cap | 1 | 13611279503 | $2.72 | ENDED | Shop at ECS Tuning | ||||
| 06 | O-ring | 100X4 | 1 | 07119905680 | Shop at ECS Tuning | |||||
| 07 | Temperature sensor, water | 1 | 13621709967 | Shop at ECS Tuning | ||||||
| 08 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Temperature-time switch | 1 | 13621362599 | $72.54 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Plug housing | 2 POL. | X | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 13 | Protection cap | L=12,5MM | X | 61131358330 | $5.33 | Shop at ECS Tuning | ||||
| 14 | Plug terminal control unit DDE | 35POL | 1 | 12521270971 | $27.56 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
