Throttle Housing Assy for BMW 3 Series E30 M3 (1990)

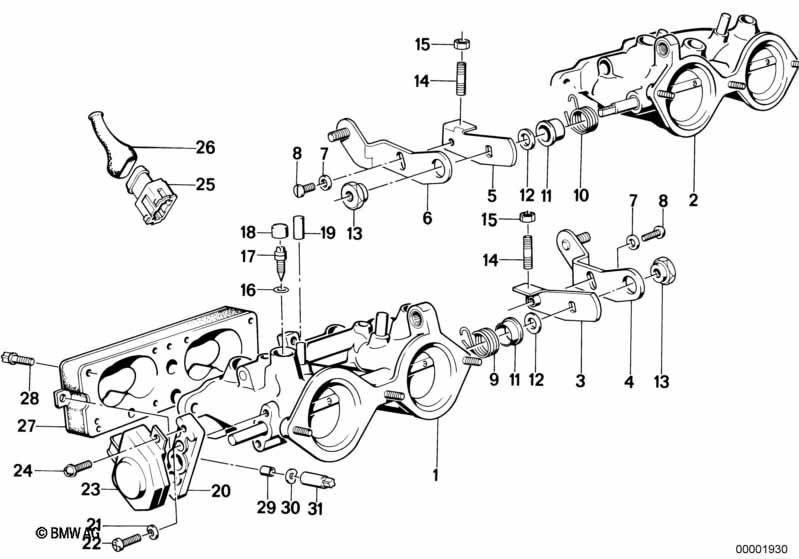

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | Throttle Housing Assy | ZYL.1-2 D=48MM | 1 | 09/1989 | 13541312887 | $1288.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter ONLY APPLIES TO M SPORT E3 |
S199A=No |
|||||||||
| 01 | Throttle Housing Assy | ZYL.1-2 D=48MM | 1 | 01/1990 | 13541312887 | $1288.98 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Throttle Housing Assy?
- This technical diagram illustrates the Throttle Housing Assy within the Fuel preparation system group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13541312887).
- Which models use the hardware listed in this Throttle Housing Assy?
- The hardware and components featured in the Throttle Housing Assy are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Throttle Housing Assy (13541312887) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle Housing Assy assembly?
- Each item in the Throttle Housing Assy corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13541312887 for the Fuel preparation system section.
