Valves/Pipes of fuel injection system for BMW 6 Series E24 M6 (1988)

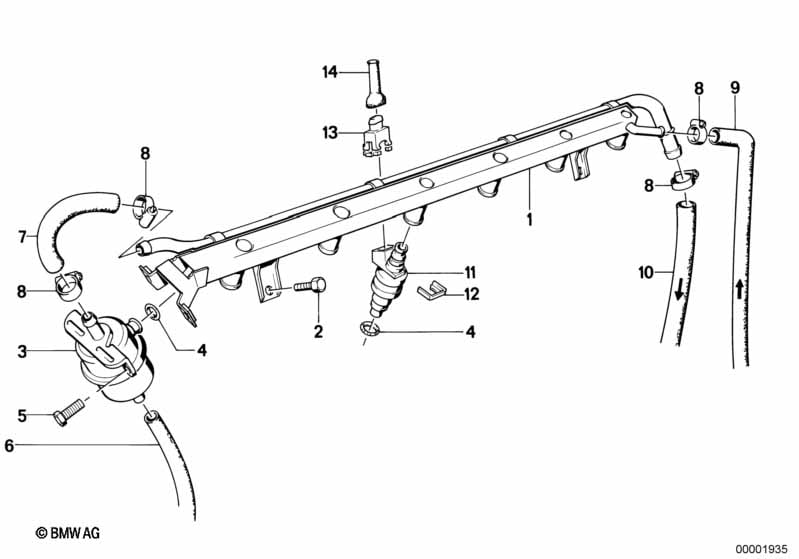

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CATALYST | |||||||||
| 01 | Injection tube | 1 | 13531310706 | $186.47 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X14-ZNNIV SI | 2 | 07119905964 | Shop at ECS Tuning | |||||
| 03 | Pressure regulator | 3,0BAR | 1 | 13531711541 | $56.93 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | 7 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 07 | Hose | AKF | 1 | 13531726960 | $6.38 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 10 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 11 | Injection valve | 6 | 13641273272 | $172.68 | Shop at ECS Tuning | |||||
| 12 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 13 | Plug housing | 2 POL. | 6 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 14 | Protection cap | L=12,5MM | 6 | 61131358330 | $5.33 | Shop at ECS Tuning | ||||
