Fuel supply/pump/filter for BMW 5 Series E12 520 (1981)

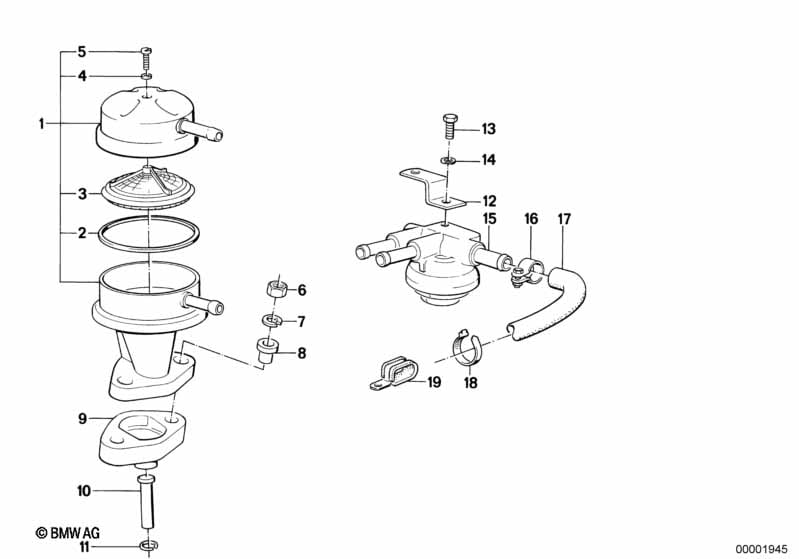

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 13311272406 | $107.44 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | APG | 1 | 13311260982 | $2.19 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | F&S | 1 | 13319057875 | $0.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuel filter | APG | 1 | 13311260979 | $16.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | 1 | 13311260981 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | 1 | 13311260980 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 07 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Insulating bushing | 2 | 13310075752 | $1.57 | Shop at ECS Tuning | |||||
| 09 | Insulator | AF | 1 | 13319065694 | $7.70 | Shop at ECS Tuning | ||||
| 09 | Insulator | AF | 1 | 13319065694 | $7.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Push rod | D=9,5MM | 1 | 13311274734 | $7.80 | Shop at ECS Tuning | ||||
| 10 | Push rod | D=9,5MM | 1 | 13311274734 | $7.80 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Insulator | AF | 1 | 13319065694 | $7.70 | Shop at ECS Tuning | ||||
| 12 | Bracket | 1 | 13111267355 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M5X12-8.8 ZN | 1 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Return valve | 1 | 08/1978 | 13311268648 | $93.30 | ENDED | Shop at ECS Tuning | |||
| 16 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 17 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 18 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 19 | Clamp | D=2X14/15 | 1 | 13311272726 | $3.17 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Fuel supply/pump/filter?
- This technical diagram illustrates the Fuel supply/pump/filter within the Fuel preparation system group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Fuel pump (Part #13311272406).
- Which models use the hardware listed in this Fuel supply/pump/filter?
- The hardware and components featured in the Fuel supply/pump/filter are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Fuel pump (13311272406) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/pump/filter assembly?
- Each item in the Fuel supply/pump/filter corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Fuel pump by locating its position on the schematic, which then links to the official BMW part number 13311272406 for the Fuel preparation system section.
