Fuel supply/pump/filter for BMW 5 Series E12 520 (1976)

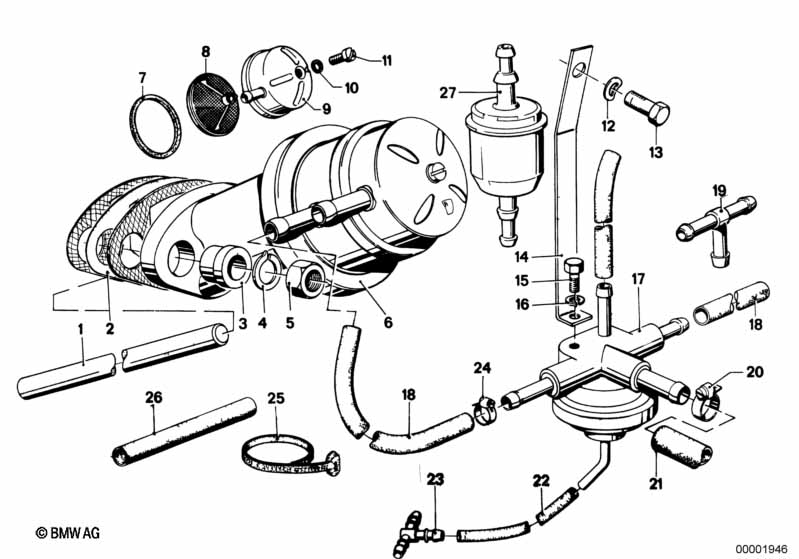

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Push rod | 1 | 13311255727 | $5.85 | Shop at ECS Tuning | |||||
| 02 | Insulator | AF | 1 | 11111721614 | $6.77 | ENDED | Shop at ECS Tuning | |||
| 03 | Insulating bushing | 2 | 13310075752 | $1.57 | Shop at ECS Tuning | |||||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuel pump | 1 | 09/1980 | 13311265193 | $104.84 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | APG | 1 | 09/1980 | 13311260982 | $2.19 | ENDED | Shop at ECS Tuning | ||
| 07 | Gasket | F&S | 1 | 09/1980 | 13319057875 | $0.54 | ENDED | Shop at ECS Tuning | ||
| 08 | Fuel filter | APG | 1 | 09/1980 | 13311260979 | $16.03 | ENDED | Shop at ECS Tuning | ||
| 09 | Cap | APG | 1 | 09/1980 | 13311260978 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket ring | 1 | 09/1980 | 13311260981 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fillister-head screw | 1 | 09/1980 | 13311260980 | ENDED | Shop at ECS Tuning | ||||
| 14 | Support | 1 | 13311257936 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M5X12-8.8 ZN | 1 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 16 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Valve | 1 | 13311257416 | $81.71 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 22 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 25 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 26 | Insulating hose | B20X1,2 | X | 07119975350 | ENDED | Shop at ECS Tuning | ||||
| 27 | Fuel filter | 6+8 MM | 1 | 13321277497 | $2.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
