Fuel supply/pump/filter for BMW 5 Series E12 528 (1976)

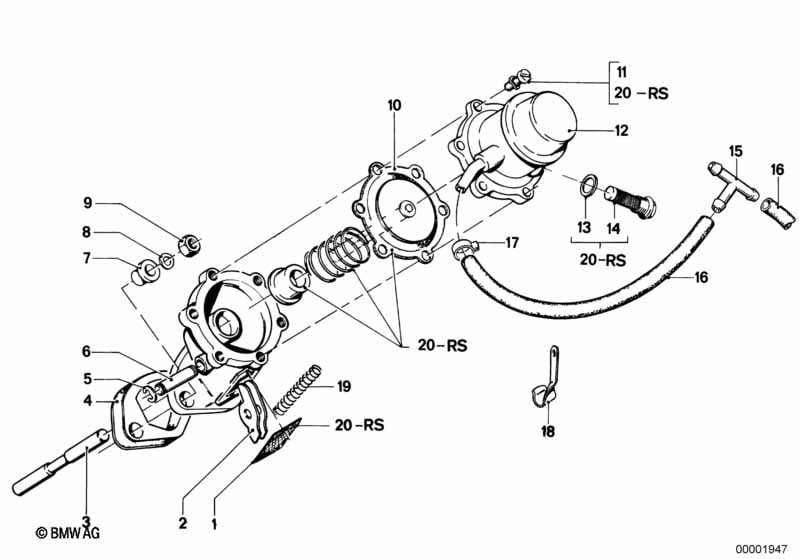

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Push rod | KFST. PUMPE | 1 | 13311250398 | $12.93 | Shop at ECS Tuning | ||||
| 07 | Insulating bushing | 2 | 13310075752 | $1.57 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 15 | Distribution piece | 1 | 13311251059 | $1.00 | Shop at ECS Tuning | |||||
| 16 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 17 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Fuel supply/pump/filter?
- This technical diagram illustrates the Fuel supply/pump/filter within the Fuel preparation system group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Push rod (Part #13311250398).
- Which models use the hardware listed in this Fuel supply/pump/filter?
- The hardware and components featured in the Fuel supply/pump/filter are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Push rod (13311250398) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/pump/filter assembly?
- Each item in the Fuel supply/pump/filter corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Push rod by locating its position on the schematic, which then links to the official BMW part number 13311250398 for the Fuel preparation system section.
