Fuel filter for BMW 6 Series E24 635CSi (1989)

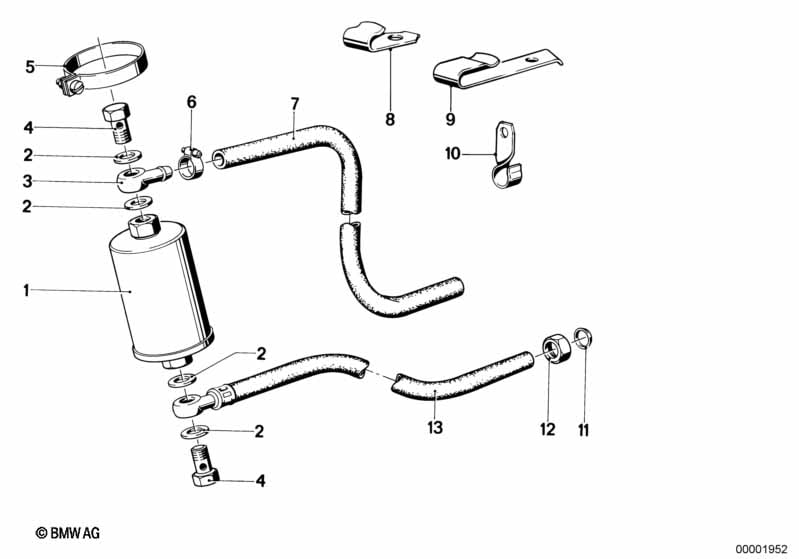

This Fuel filter technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Hose clamp | L=47-54MM | 1 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 4 | 13311265779 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 08 | Cable holder | 2 | 13311256511 | ENDED | Shop at ECS Tuning | |||||
| 09 | Clamp | 1 | 13311264856 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 13311261760 | $3.17 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Fuel filter?
- This technical diagram illustrates the Fuel filter within the Fuel preparation system group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Hose clamp (Part #07129952121).
- Which models use the hardware listed in this Fuel filter?
- The hardware and components featured in the Fuel filter are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Hose clamp (07129952121) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel filter assembly?
- Each item in the Fuel filter corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Hose clamp by locating its position on the schematic, which then links to the official BMW part number 07129952121 for the Fuel preparation system section.
