Volume air flow sensor for BMW 3 Series E30 318is

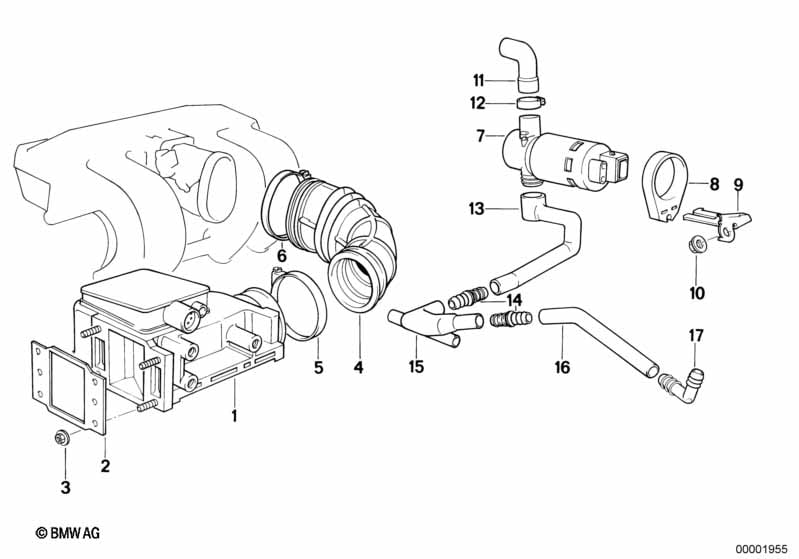

This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Catalytic converter |
=No |
|||||||||
| 01 | Air volume determinator with co-poti | 1 | 13627547980 | $580.29 | Shop at ECS Tuning | |||||
| For vehicles with Catalytic converter |
=Yes |
|||||||||
| 01 | Hot film air mass meter w.adapter cable | 1 | 13627558785 | $580.29 | Shop at ECS Tuning | |||||
| 02 | Sealing frame | 1 | 13711705064 | $0.70 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Rubber boot | 1 | 10/1991 | 13711721431 | $14.64 | ENDED | Shop at ECS Tuning | |||
| 04 | Rubber boot | 1 | 10/1991 | 13711734385 | $34.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Blind plug | 1 | 10/1991 | 13541739249 | $2.95 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 07 | T-shape idle regulating valve | 1 | 03/1993 | 13411709932 | ENDED | Shop at ECS Tuning | ||||
| 07 | T-shape idle regulating valve | 1 | 13411433627 | $218.55 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber grommet | 1 | 13411247344 | $19.73 | Shop at ECS Tuning | |||||
| 08 | Rubber grommet | 1 | 03/1993 | 13411721974 | $2.70 | ENDED | Shop at ECS Tuning | |||
| 09 | Holder | 1 | 13411721973 | $1.40 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM7 ZNNIV SI | 1 | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Air hose | 1 | 13411721971 | $5.23 | Shop at ECS Tuning | |||||
| 12 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 13 | Air hose | 1 | 13411721972 | $9.39 | Shop at ECS Tuning | |||||
| 14 | Connector | 2 | 11151727393 | $2.75 | ENDED | Shop at ECS Tuning | ||||
| 15 | Air hose | 1 | 13411721907 | $8.75 | Shop at ECS Tuning | |||||
| 16 | Air hose | 1 | 10/1991 | 13411721909 | $6.50 | Shop at ECS Tuning | ||||
| 17 | Connector | 1 | 11151277301 | $1.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Volume air flow sensor?
- This technical diagram illustrates the Volume air flow sensor within the Fuel preparation system group for the 3 Series E30 318is. It provides a detailed exploded view of the components, identifying key parts such as the Air volume determinator with co-poti (Part #13627547980).
