Valves/Pipes of fuel injection system for BMW 3 Series E30 318is

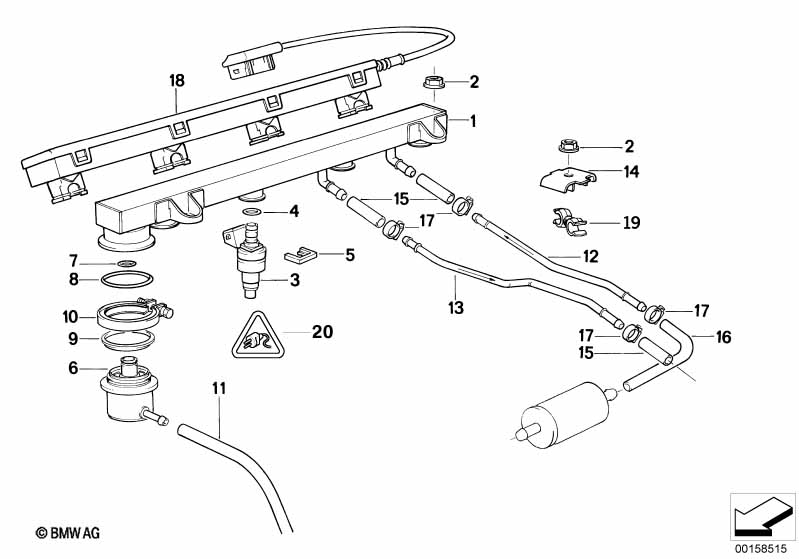

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13531727055 | $81.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 02/1990 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X25-ZNNIV SI | 2 | 02/1990 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 03 | Injection valve | BOSCH | 4 | 13641706176 | $113.07 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | 8 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 4 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 3,0BAR/BOSCH | 1 | 13531743378 | $116.12 | Shop at ECS Tuning | ||||
| 07 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 08 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 09 | Retainer | 1 | 13531721936 | $3.12 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 11717786146 | $8.11 | Shop at ECS Tuning | |||||
| 11 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 12 | Feed line | 1 | 01/1991 | 13531727035 | Shop at ECS Tuning | |||||
| 12 | Feed line | 1 | 01/1991 | 13531734195 | $20.64 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Return pipe | 1 | 01/1991 | 13531734196 | $21.39 | Shop at ECS Tuning | ||||
| 12 | Feed line | 1 | 01/1991 | 13531734195 | $20.64 | Shop at ECS Tuning | ||||
| 13 | Return pipe | 1 | 01/1991 | 13531734196 | $21.39 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Feed line | 1 | 01/1991 | 13531734195 | $20.64 | Shop at ECS Tuning | ||||
| 13 | Return pipe | 1 | 01/1991 | 13531734196 | $21.39 | Shop at ECS Tuning | ||||
| 14 | Fuel pipe bracket | 1 | 13531717650 | $5.35 | Shop at ECS Tuning | |||||
| 15 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 16 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 17 | Hose clamp | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 18 | Plug-board | 1 | 12511724303 | $157.36 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hose clamp | 1 | 13311287351 | $1.73 | Shop at ECS Tuning | |||||
| 20 | Socket housing | 2 POL. | 1 | 12521427221 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Injection valve | BOSCH | X | 13641726988 | $137.88 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Valves/Pipes of fuel injection system?
- This technical diagram illustrates the Valves/Pipes of fuel injection system within the Fuel preparation system group for the 3 Series E30 318is. It provides a detailed exploded view of the components, identifying key parts such as the Injection tube (Part #13531727055).
- Which models use the hardware listed in this Valves/Pipes of fuel injection system?
- The hardware and components featured in the Valves/Pipes of fuel injection system are specific to the 3 Series E30 318is. These technical specifications ensure that parts like the Injection tube (13531727055) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valves/Pipes of fuel injection system assembly?
- Each item in the Valves/Pipes of fuel injection system corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Injection tube by locating its position on the schematic, which then links to the official BMW part number 13531727055 for the Fuel preparation system section.
