Throttle Housing Assy for BMW 3 Series E30 318is

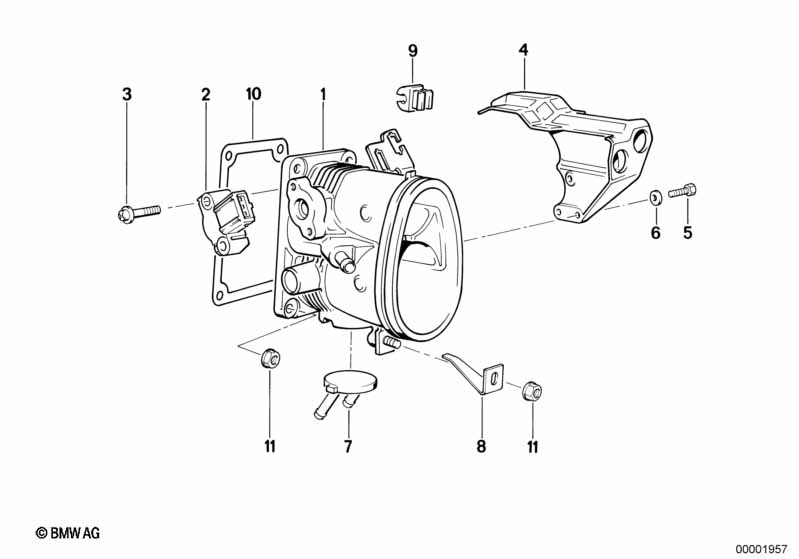

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 35/54 | 1 | 10/1991 | 13541721700 | $355.76 | ENDED | Shop at ECS Tuning | ||
| 02 | Throttle valve switch | 4 KOHM | 1 | 10/1991 | 13631721456 | +core | Shop at ECS Tuning | |||
| 03 | Fillister head screw | M4X2,5 | 2 | 10/1991 | 13541726918 | $5.50 | Shop at ECS Tuning | |||
| 04 | Holder | 1 | 10/1991 | 13541727147 | $27.75 | Shop at ECS Tuning | ||||
| 05 | Fit bolt | 3 | 10/1991 | 13541727876 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | 3 | 10/1991 | 13541727877 | ENDED | Shop at ECS Tuning | ||||
| 07 | Heater element | 1 | 10/1991 | 13541727206 | $20.64 | Shop at ECS Tuning | ||||
| 08 | Spring | 1 | 10/1991 | 13541727350 | $0.40 | Shop at ECS Tuning | ||||
| 09 | NIpple | 1 | 10/1991 | 13541288013 | $0.53 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket Asbestos Free | 1 | 10/1991 | 13541743261 | $2.02 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 10/1991 | 07129904553 | $0.64 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
