Control unit L-jetronic for BMW 3 Series E30 318i (1982)

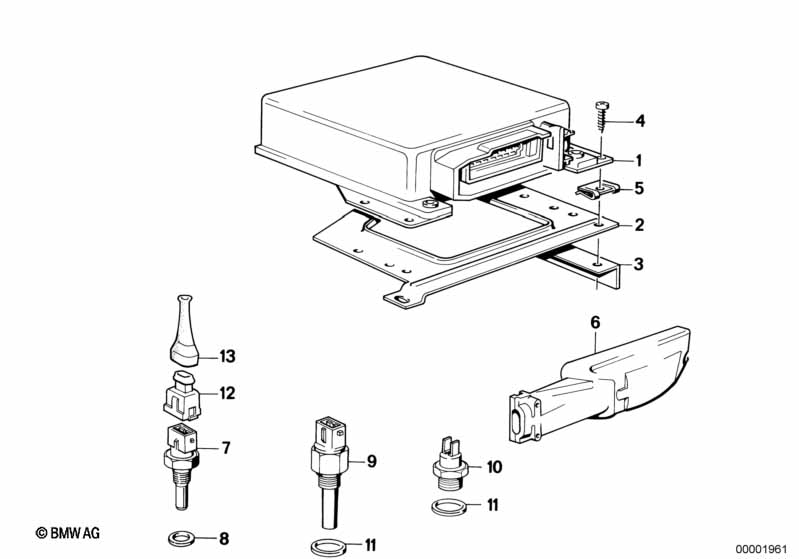

This Control unit L-jetronic technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Mounting plate | 1 | 13621286077 | $6.90 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket | 1 | 13611717235 | $4.07 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST6,3X19-C | 4 | 07119916830 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST6,3-1-ZNS3 | 4 | 07129904231 | Shop at ECS Tuning | |||||
| 06 | Plug housing | 25POL | 1 | 12521277176 | $13.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Plug housing | 2 POL. | X | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 13 | Protection cap | L=12,5MM | X | 61131358330 | $5.33 | Shop at ECS Tuning |
