Control unit for BMW 6 Series E24 630CSi (1977)

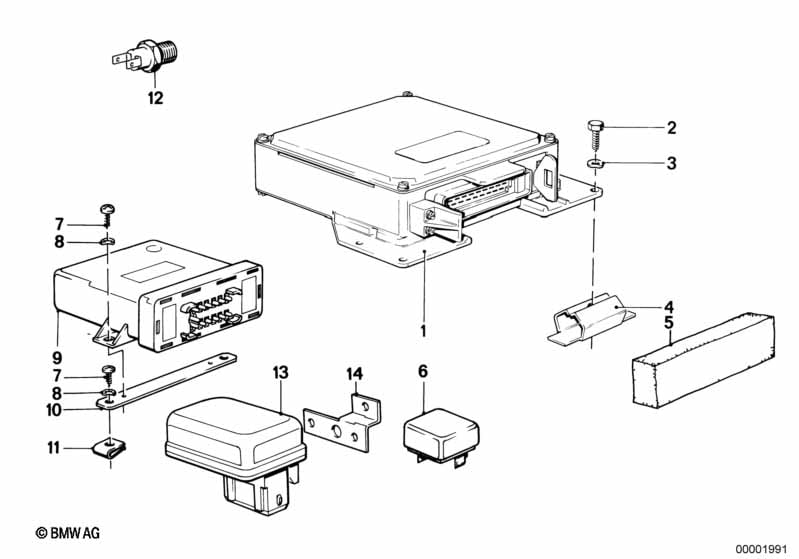

This Control unit technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Control unit L-Jetronic | 1 | 13611362647 | $950.00 | Shop at ECS Tuning | |||||
| MOTRONIC REFER HG 12 | ||||||||||
| 01 | AT-Control unit | 1 | 13611466111 | $950.00 | Shop at ECS Tuning | |||||
| MOTRONIC REFER HG 12 | ||||||||||
| 02 | Hex head screw | ST5,5X25-C-Z2 | 2 | 07119916957 | $0.30 | ENDED | Shop at ECS Tuning | |||
| 03 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Prestol-cage | A5,6 | 2 | 07129925770 | $1.15 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 630CSi Control unit?
- This technical diagram illustrates the Control unit within the Fuel preparation system group for the 6 Series E24 630CSi produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the AT-Control unit L-Jetronic (Part #13611362647).
- Which models use the hardware listed in this Control unit?
- The hardware and components featured in the Control unit are specific to the 6 Series E24 630CSi produced during 1977. These technical specifications ensure that parts like the AT-Control unit L-Jetronic (13611362647) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit assembly?
- Each item in the Control unit corresponds to the numbered list below the illustration. For the 6 Series E24 630CSi, you can identify the AT-Control unit L-Jetronic by locating its position on the schematic, which then links to the official BMW part number 13611362647 for the Fuel preparation system section.
