Control unit for BMW 5 Series E28 524td (1985)

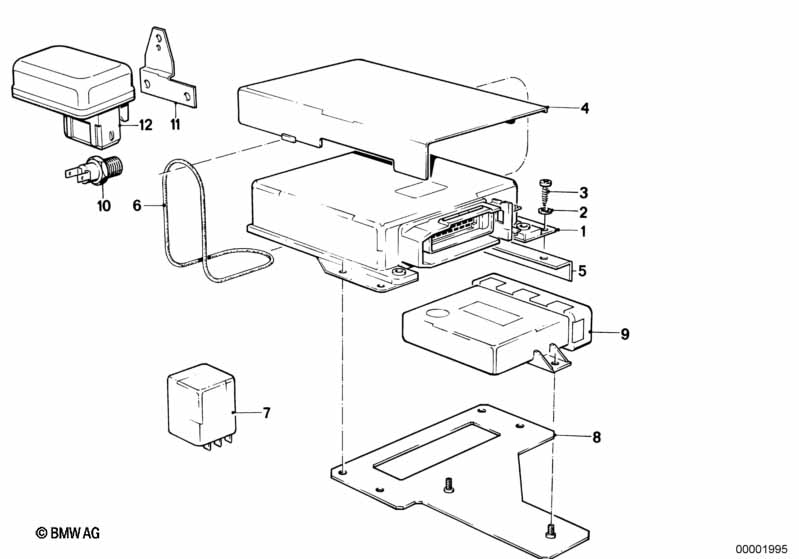

This Control unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex head screw | ST6,3X22-C-Z1 | 2 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Holder | 2 | 12141286690 | $2.30 | ENDED | Shop at ECS Tuning | ||||
| 07 | Relay | GELB | 2 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 07 | Mini-relay | 2 | 61311373588 | $11.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 524td Control unit?
- This technical diagram illustrates the Control unit within the Fuel preparation system group for the 5 Series E28 524td produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Spring washer Black (Part #07119932073).
- Which models use the hardware listed in this Control unit?
- The hardware and components featured in the Control unit are specific to the 5 Series E28 524td produced during 1985. These technical specifications ensure that parts like the Spring washer Black (07119932073) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit assembly?
- Each item in the Control unit corresponds to the numbered list below the illustration. For the 5 Series E28 524td, you can identify the Spring washer Black by locating its position on the schematic, which then links to the official BMW part number 07119932073 for the Fuel preparation system section.
