Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E30 325e (1988)

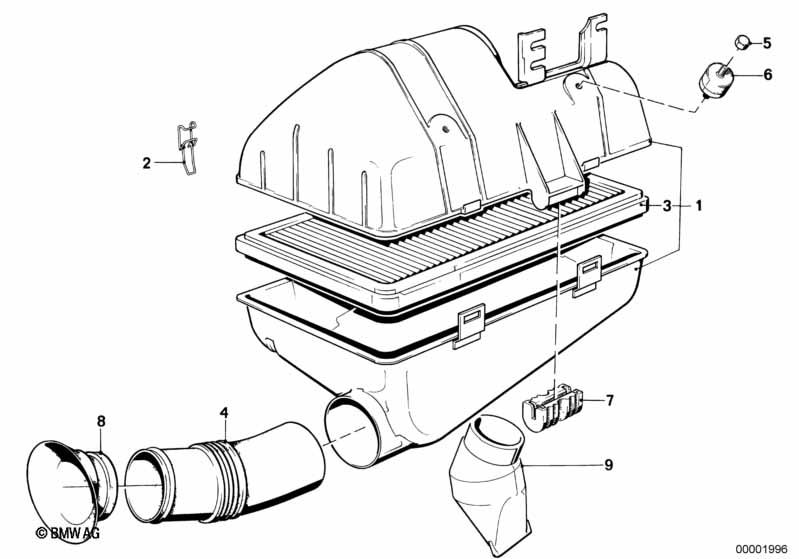

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CONVENTIONAL EXHAUST TECHNIQUE CATALYZER PREPARATION CATALYST FG* 520i (0) 8575000 FG* 520i (00)8325000 FG* 520ia(0) 7190000 FG* 520ia(00)8330000 |
|||||||||
| For vehicles with 325e |
V003A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 13711726966 | Shop at ECS Tuning | ||||||
| SHIELD MOULDED PART |
||||||||||
| 02 | Spring clip | L=34MM | 4 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Intake muffler | X | 13711726965 | $233.75 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO PLASTIC VERSION | ||||||||||
| 03 | Air filter element | 1 | 13721720861 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO PLASTIC VERSION | ||||||||||
| 03 | Air filter element | 1 | 13721278138 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| 03 | Air filter element | 1 | 13721278138 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Intake muffler | X | 13711278135 | $291.28 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SHEET METAL VERSION | ||||||||||
| 05 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Distance rubber | 1 | 13711312328 | $6.75 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
