Fuel supply/filter for BMW 3 Series E30 318is

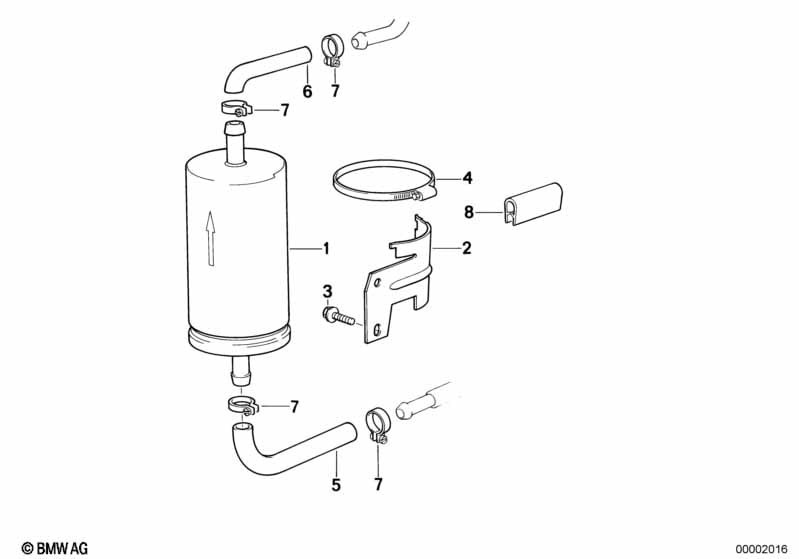

This Fuel supply/filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | 1 | 13321720101 | Shop at ECS Tuning | ||||||
| 02 | Bracket | 1 | 13321727344 | $1.68 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-Z3-2 | 1 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L=53-60MM | 2 | 07129952123 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 06 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Edge protection | GRAU | X | 51721832146 | $5.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Fuel supply/filter?
- This technical diagram illustrates the Fuel supply/filter within the Fuel preparation system group for the 3 Series E30 318is. It provides a detailed exploded view of the components, identifying key parts such as the Fuel filter (Part #13321720101).
- Which models use the hardware listed in this Fuel supply/filter?
- The hardware and components featured in the Fuel supply/filter are specific to the 3 Series E30 318is. These technical specifications ensure that parts like the Fuel filter (13321720101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/filter assembly?
- Each item in the Fuel supply/filter corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Fuel filter by locating its position on the schematic, which then links to the official BMW part number 13321720101 for the Fuel preparation system section.
