Valves/Pipes of fuel injection system for BMW 5 Series E34 525ix (1996)

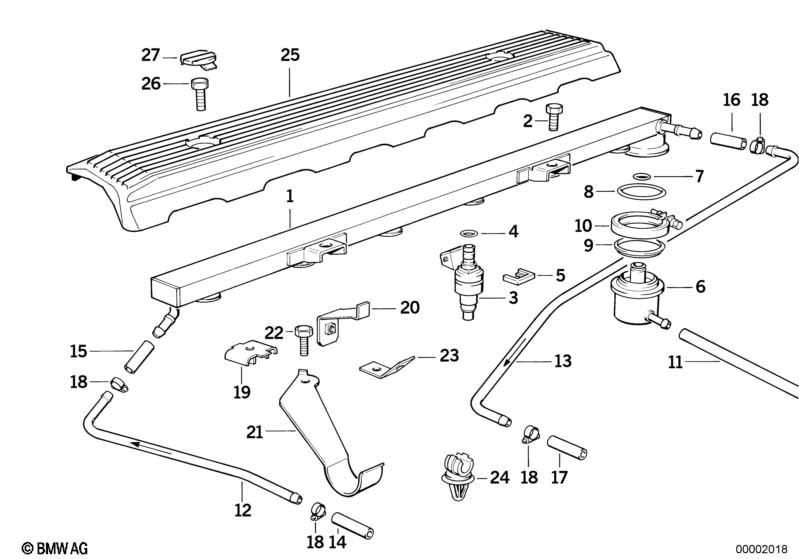

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13531748583 | $416.26 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lock Ring | 1 | 13531736234 | $2.12 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Injection valve | BOSCH | 6 | 13641730060 | $122.42 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 1 | 13531436110 | $75.10 | Shop at ECS Tuning | |||||
| 07 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 08 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 12 | Fuel supply line | 1 | 13311726410 | $57.40 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fuel return line | 1 | 13311726399 | $23.25 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO FUEL FEED LINE |
||||||||||
| 14 | Kit for fuel hose and clamp | 360MM/FPM | 1 | 13311703488 | $23.63 | Shop at ECS Tuning | ||||
| 15 | Kit for fuel hose and clamp | 200MM/FPM | 1 | 13311703491 | $15.23 | Shop at ECS Tuning | ||||
| 15 | Kit for fuel hose and clamp | 200MM/FPM | 1 | 13311703491 | $15.23 | SI 130293692 | Shop at ECS Tuning | |||
| ONLY APPLIES TO FUEL RETURN LINE |
||||||||||
| 16 | Kit for fuel hose and clamp | .70MM/FPM | 1 | 13311403416 | $12.72 | SI 130293692 | Shop at ECS Tuning | |||
| 16 | Fuel hose | 8X13MMX1000 | 1 | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 17 | Kit for fuel hose and clamp | 360MM/FPM | 1 | 13311703488 | $23.63 | SI 130293692 | Shop at ECS Tuning | |||
| 18 | Hose clamp | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 19 | Fuel pipe bracket | 1 | 13531717650 | $5.35 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer | 1 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 20 | Bracket | 1 | 13311735281 | $8.93 | ENDED | Shop at ECS Tuning | ||||
| 21 | Holder | 1 | 11531730531 | $29.20 | ENDED | Shop at ECS Tuning | ||||
| 22 | Hex bolt | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 23 | Fuel pipe bracket | 1 | 13311730202 | $1.07 | Shop at ECS Tuning | |||||
| 24 | Clip | D=8MM | 1 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| 25 | Cover | 1 | 13531735750 | $89.86 | Shop at ECS Tuning | |||||
| 26 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 27 | Cap | 2 | 11121726089 | $2.12 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
