Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 5 Series E34 525i (1995)

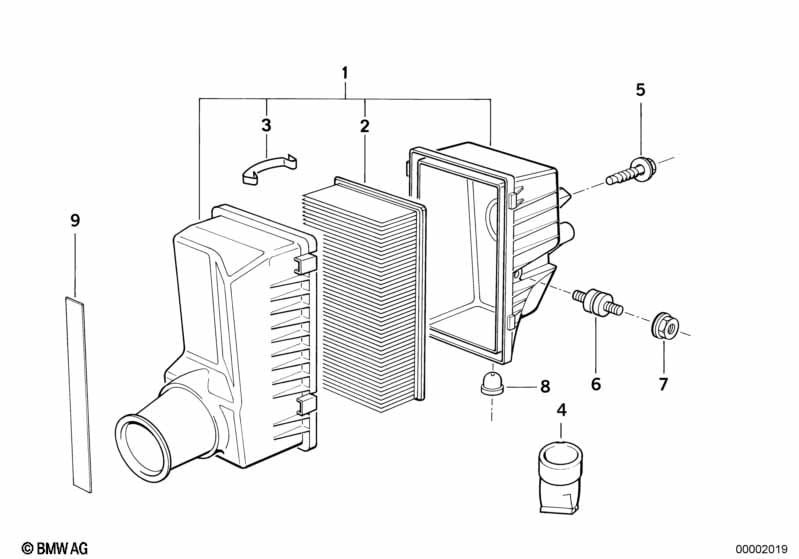

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13711735344 | $300.56 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Intake muffler with cyclon | 1 | 13711735347 | ENDED | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 13721730918 | Shop at ECS Tuning | ||||||
| 03 | Spring clip | L=42MM | 5 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 04 | Zyklon pre separator | MANN & HUMMEL | 1 | 13711705459 | $8.13 | Shop at ECS Tuning | ||||
| 04 | Zyklon pre separator | KNECHT | 1 | 13711730279 | $8.23 | Shop at ECS Tuning | ||||
| 05 | Screw | K50X22 | 2 | 13711715678 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 2 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Rubber buffer | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 09 | Sealing strip | 1 | 13711730454 | $0.77 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
