Mass air flow sensor for BMW 8 Series E31 850Ci (1994)

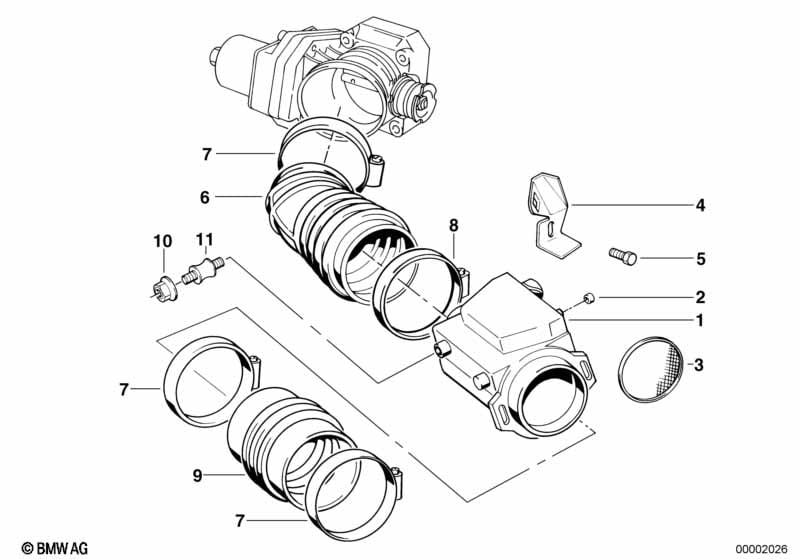

This Mass air flow sensor technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mass air flow sensor | BOSCH | 2 | 13627527525 | $580.29 | Shop at ECS Tuning | ||||
| 02 | Cap | 2 | 13621363874 | $7.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Protection grid f additional fan | 4 | 13621730088 | $9.47 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket left | ZYL.7-12 | 1 | 13621731396 | $4.07 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister-head screw | M6X12 ZN/SW | 1 | 07119919800 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Connector | ZYL.1-6 | 1 | 13711733301 | $15.18 | Shop at ECS Tuning | ||||
| 06 | Connector | ZYL.7-12 | 1 | 13711733302 | $15.18 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L71-78 | 6 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 2 | 13711725678 | $4.64 | Shop at ECS Tuning | |||||
| 09 | Connector | 2 | 13711725816 | $18.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Mass air flow sensor?
- This technical diagram illustrates the Mass air flow sensor within the Fuel preparation system group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Mass air flow sensor (Part #13627527525).
- Which models use the hardware listed in this Mass air flow sensor?
- The hardware and components featured in the Mass air flow sensor are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Mass air flow sensor (13627527525) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mass air flow sensor assembly?
- Each item in the Mass air flow sensor corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Mass air flow sensor by locating its position on the schematic, which then links to the official BMW part number 13627527525 for the Fuel preparation system section.
