Volume air flow sensor for BMW 3 Series E36 318is (1993)
This Volume air flow sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with without catalytic converter and Catalytic converter |
S199A=No =Yes |
|||||||||
| 01 | Hot film air mass meter w.adapter cable | 1 | 13627558785 | $580.29 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter and Catalytic converter |
S199A=Yes =No |
|||||||||
| 01 | Air volume determinator with co-poti | 1 | 13627547980 | $580.29 | Shop at ECS Tuning | |||||
| 02 | Sealing frame | 1 | 13711705064 | $0.70 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||

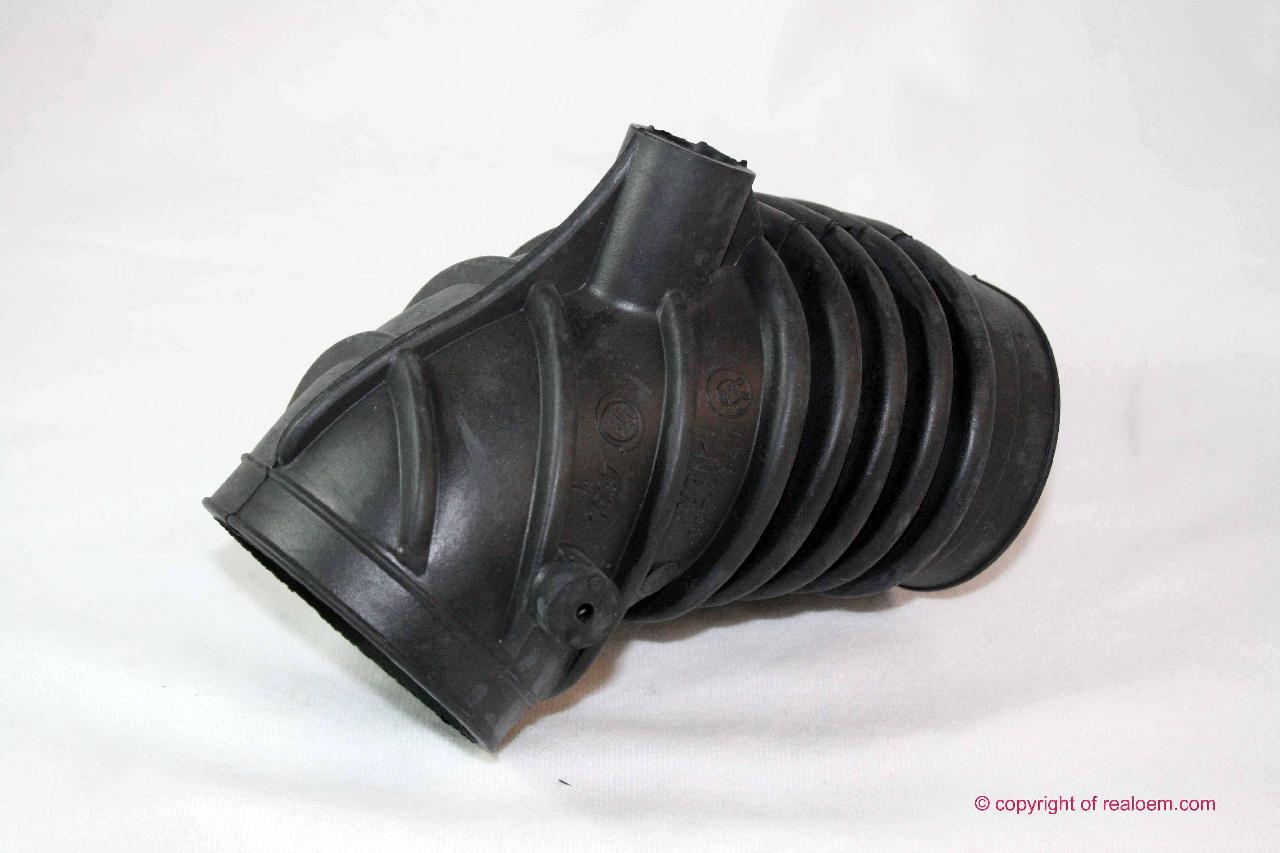

| 04 | Rubber boot | 1 | 09/1994 | 13711734258 | $32.98 | SI 130490281 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 07 | L-shape idle regulating valve | 1 | 09/1993 | 13411435995 | $216.95 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 1 | 09/1993 | 13411721974 | $2.70 | ENDED | Shop at ECS Tuning | |||
| 09 | Bracket idle adjuster | 1 | 13411734521 | $2.43 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||

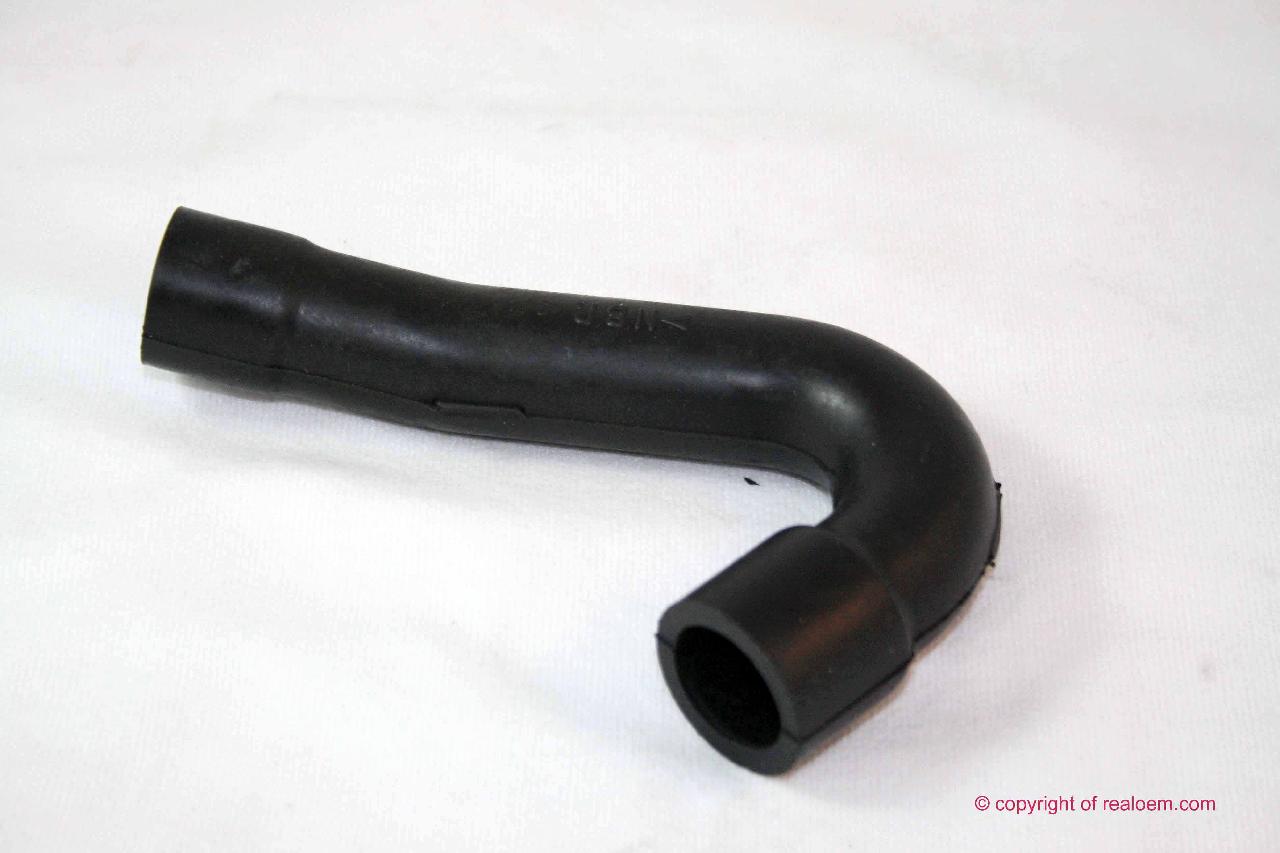

| 11 | Air hose | 1 | 09/1993 | 13411734522 | $12.98 | SI 120294826 | Shop at ECS Tuning | |||
| 12 | Air hose | 1 | 09/1993 | 13411734523 | $18.35 | Shop at ECS Tuning | ||||
| 13 | Support | 1 | 13411722944 | $0.53 | Shop at ECS Tuning | |||||
| 14 | Tubing support | D8 | 1 | 12531721040 | $0.50 | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
