Throttle Housing Assy for BMW 3 Series E36 316i (1994)

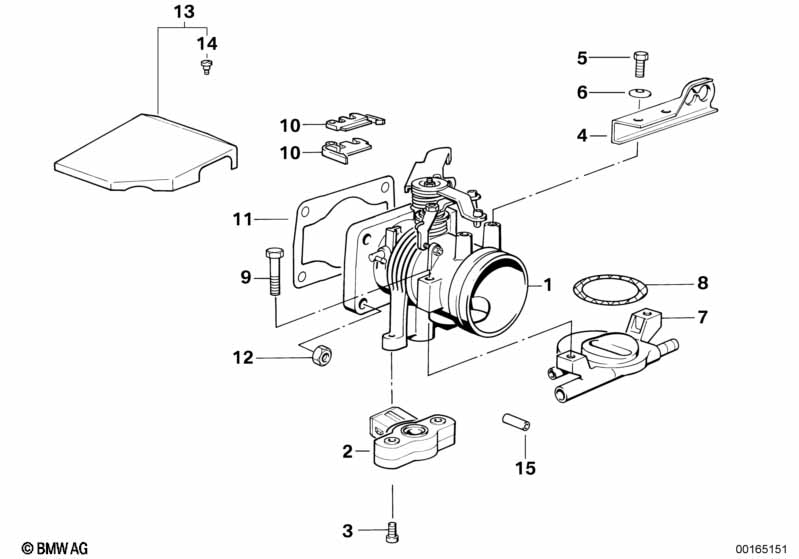

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 13541734773 | ENDED | Shop at ECS Tuning | |||||
| 02 | Throttle valve switch | 4 KOHM | 1 | 13631721456 | +core | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M4 X 9,2 | 2 | 13541705562 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Bracket for accelerator bowden cable | DVG | 1 | 13541727813 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | DVG | 2 | 13541722008 | ENDED | Shop at ECS Tuning | ||||
| 06 | Circlip | DVG | 2 | 13541722007 | ENDED | Shop at ECS Tuning | ||||
| 07 | Heater element | 1 | 13541727007 | ENDED | Shop at ECS Tuning | |||||
| 08 | O-ring | 33X1,5 | 1 | 13541721086 | $1.88 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M6X35-Z1-8.8-MK | 2 | 07119900611 | $1.58 | Shop at ECS Tuning | ||||
| 10 | Bearing accelator bowden cable | 2 | 13541709712 | Shop at ECS Tuning | ||||||
| 11 | Gasket Asbestos Free | 1 | 13541727238 | $1.14 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 13541734320 | Shop at ECS Tuning | ||||||
| 14 | Screw | 3 | 13541734125 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cap | D=7,0MM | 1 | 11611727176 | $3.39 | Shop at ECS Tuning |
