Fuel injection system/Injection valve for BMW 3 Series E36 318is (1993)

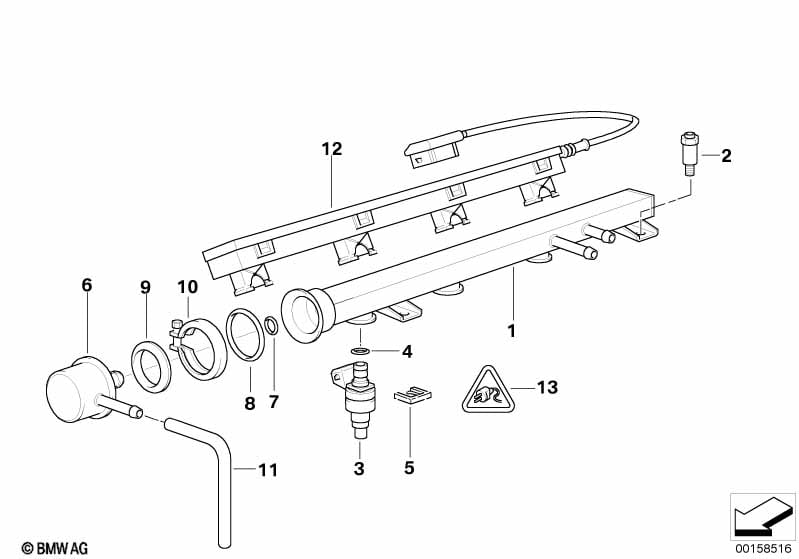

This Fuel injection system/Injection valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | HC1/2 | 1 | 13531734355 | $56.57 | Shop at ECS Tuning | ||||
| 02 | Spacer | M8X56 | 2 | 13531721246 | $5.85 | Shop at ECS Tuning | ||||
| 03 | Injection valve | BOSCH | 4 | 13641706176 | $113.07 | Shop at ECS Tuning | ||||
| 03 | Injection valve | LUCAS | 4 | 13641739242 | $122.42 | +core | Shop at ECS Tuning | |||
| For vehicles with National version israel |
L808A=Yes |
|||||||||
| 03 | Injection valve | LUCAS | 4 | 13641739242 | $122.42 | +core | Shop at ECS Tuning | |||
| 04 | O-ring | 7,52X3,53 | 8 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 4 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 3,0BAR/PIERBURG | 1 | 13531729320 | $75.10 | Shop at ECS Tuning | ||||
| 07 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 08 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 13 | Socket housing | 2 POL. | 1 | 12521427221 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
